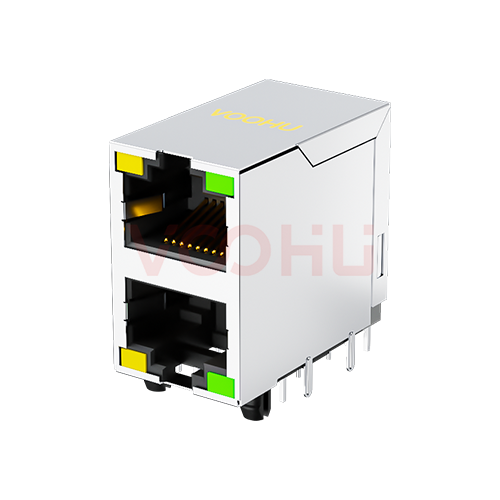

WHSM2415N0 10G-Base-T Single Port 24PIN
Request a Quote
Leave your details and we will send a tailored volume quote.
Our sales team will contact you within 1 business day.
Contact Sales
Reach our sales team for pricing and lead time.
Submitted
We have received your request. Our sales team will contact you within 1 business day.
技術的なサポートが必要な場合は、カスタマーサービスを追加するには下のボタンをクリックしてください or サンプルリクエストページにアクセスしてくださいフォームに記入します。できるだけ早く対応させていただきます。
テクニカル サポート 電子メール: fae.thorne@voohu.cn 電話: +86 400-1048-018
詳細については、こちらをご覧ください。ダウンロードセンター書類を入手するか、下のボタンをクリックしてカスタマーサービスを追加してください。できるだけ早く対応させていただきます。
少量の注文の場合は、次のサイトで直接注文できます。VOOHUショップ。当社は、便利で効率的なプロセスで VAT 一般/特別請求書をサポートします。
技術サポートやサンプルリクエストについては、こちらまでお問い合わせください。下のボタンをクリックしてください顧客サービスを追加するため、またはサンプルリクエストページにアクセスしてくださいフォームに記入します。できるだけ早く対応させていただきます。
カスタマーサービス 電子メール: Song.lei@voohu.cn 電話: +86 180 2130 1120
Specifications for PoE Support 30W, each magnetic channel supports 360 ma DC balance current, total 720 maA. 720 MA is the combined capacity of two channels at the port, not 360 MA times four, nor is it a rating for any of the centre's nodes. This is the lowest of the current PoE capabilities of the Beneficials, and if the port is to be supplied at 60 W or higher, the higher current capacity model should be selected. Four paths are designed for copper in a balanced manner for each article 360 MA, and copper width is calculated by the actual copper thickness and permitted temperature rise.
is the temperature of the device and this cap already contains its own temperature increase. The specifications indicate a temperature increase in the working temperature line, so +70 & Deg; C is the permitted temperature boundary for the WHSM 24015N0, which is not the allowed ambient temperature limit in the case and cannot be superimposed on it. Thermal design is calculated in reverse: the temperature increase is estimated from +70 & dig; C by the whole windway and the PoE load, and the available environmental temperature surplus is left. This step needs to be measured on the prototype, and the specifications do not provide a temperature curve.
Viewer working temperature: Require -40 & Deg; C to +85 & Deg; C for WHSM2415T0, 0 & Deg; C to +70 & Deg; C for WHSM2415N0. The PoE calibres in both sections are identical & mdash; — both are PPE Support 30W, a total of 720 MA for each channel, and the rest of the electrical blocks, both of which have temperature caps that contain the temperature of the device. The replacement does not change the electrical design and copper budget, but only the available ambient temperature surplus.
