WHDG24102G Single Port DIP Gigabit Base-T PIN24 non-PoE LAN Transformer

WHDG24102G Single Port DIP Gigabit Base-T PIN24 non-PoE LAN Transformer

Category: LAN Transformer

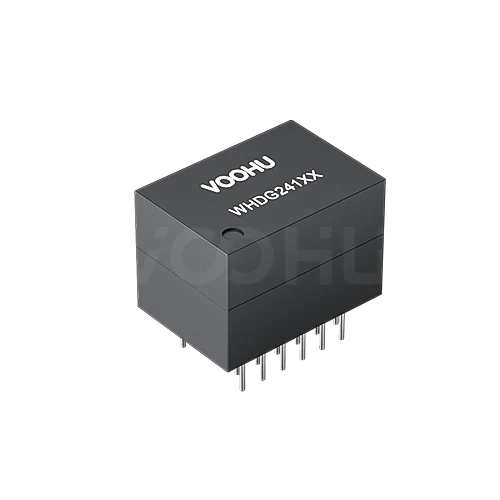

WHDG24102G LAN Transformer perspective view
Left click: Rotate | Right click: Pan | Scroll: Zoom
Get a Quote or Samples
›
Product Datasheet
›
+ Add to Inquiry
›
Support
›
3D Model
›
PCB Layout / Package
›
Contact Us
›
VOOHU sales contact QR code
Buy Online
›

Request a Quote

Leave your details and we will send a tailored volume quote.

Leave a phone number or an email. Either one is enough.

Our sales team will contact you within 1 business day.

Contact Sales

Reach our sales team for pricing and lead time.

Contact Sales
Sales Hotline: +86 133 5804 1040
Email: voohu@voohuele.com
✓

Submitted

We have received your request. Our sales team will contact you within 1 business day.

Urgent? Message us on WhatsApp: +86 133 5804 1040

Product Parameters
データレート 100/1000 Base-T
実装方式 DIP
ポート数 1ポート
ピン数 24
ピッチ 2.0mm
動作温度 0~70 °C
Vt(V RMS) 1500
PoE 非PoE
Solution
Ethernet
SPE
CAN
RS485
LVDS
Isolated SPI
PoE
Push-Pull Converter
Technical Resources and Design Support
We also provide professional technical support and document download services, including: package library download, datasheet download, reference circuit design materials, 3D model download, etc.
For technical assistance, please message us on WhatsApp or visit the sample request page to fill out the form. We will serve you as soon as possible.
Technical Support Email: voohu@voohuele.com WhatsApp: +86 133 5804 1040
Quality Certifications
VOOHU is ISO 9001 and ISO 14001 certified. Our main product lines are RoHS and REACH compliant, backed by third-party test reports, and selected RJ45 connector models carry a CE certificate.
For certificates and test reports, please visit the Download Center, or contact us and we will send you the documents you need.
ISO9001 ISO14001 RoHS REACH CE
Get a Quote or Samples
Whether you need sample testing, bulk purchasing or customized solutions, our sales team will respond quickly.
For samples, pricing or technical assistance, please visit the sample request page to fill out the form, or message us on WhatsApp. We will serve you as soon as possible.
Email: voohu@voohuele.com WhatsApp: +86 133 5804 1040
Get a Quote or Samples › Contact Us ›
VOOHU sales contact QR code
FAQ LAN Transformer: WHDG24102G
A

Gigabit, single port.

The WHDG24102G holds four 1CT:1CT units forming four channels across two pairsets — two pairsets per port is the Gigabit-and-above structure, where a 100M port has only two channels in one pairset. The drawing title reads 100/1000 BASE-TX. Counting transformer units is the most direct check: four units in a single-port part means Gigabit, two means 100M. Other single-port parts are listed in the 100/1000 BASE-T range.

A

No. The WHDG24102G electrical block runs to eleven items and none states a current capability or an IEEE power class.

The 8 mA in the datasheet is the DC bias applied while measuring open-circuit inductance to verify magnetising behaviour — it is not current available to a load. Whether a part can deliver power is decided by a separate line stating current capability and the applicable IEEE class, not by the test condition on the inductance line. PoE parts are listed in the 100/1000 BASE-T range.

A

0 °C to +70 °C, a commercial grade; storage is quoted separately as -40 °C to +85 °C.

The two have to be read separately — the storage range is the unpowered limit and must not be used as an operating range, and reading its -40 °C as an available cold end is a common mistake. Where equipment will power up below 0 °C, choose a part whose operating range reaches -40 °C. Isolation on the WHDG24102G is 1500 VAC / 1 mA / 60 s. Wide-temperature options are listed in the 100/1000 BASE-T range.
