WHSQ48004-1PG Dual Ports SMD 2.5G/5G PIN48 LAN Transformer

WHSQ48004-1PG Dual Ports SMD 2.5G/5G PIN48 LAN Transformer

Category: LAN Transformer

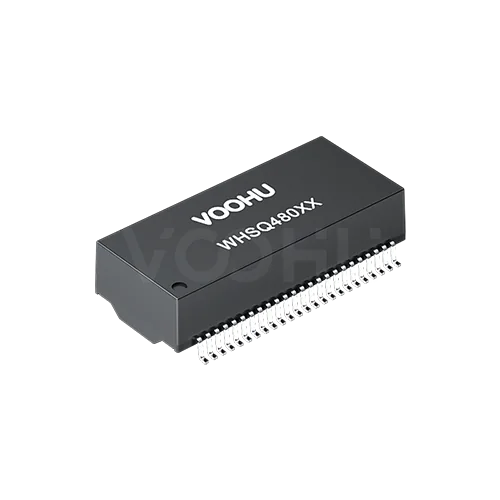

WHSQ48004-1PG LAN Transformer perspective view
Left click: Rotate | Right click: Pan | Scroll: Zoom
Get a Quote or Samples
›
Product Datasheet
›
+ Add to Inquiry
›
Support
›
3D Model
›
PCB Layout / Package
›
Contact Us
›
VOOHU sales contact QR code
Buy Online
›

Request a Quote

Leave your details and we will send a tailored volume quote.

Leave a phone number or an email. Either one is enough.

Our sales team will contact you within 1 business day.

Contact Sales

Reach our sales team for pricing and lead time.

Contact Sales
Sales Hotline: +86 133 5804 1040
Email: voohu@voohuele.com
✓

Submitted

We have received your request. Our sales team will contact you within 1 business day.

Urgent? Message us on WhatsApp: +86 133 5804 1040

Product Parameters
データレート 2.5/5G Base-T
実装方式 SMD
ポート数 2ポート
ピン数 48
ピッチ 1.02mm
動作温度 0~70 °C
Vt(V RMS) 1500
PoE PoE+(最大720 mA)
Solution
Ethernet
SPE
CAN
RS485
LVDS
Isolated SPI
PoE
Push-Pull Converter
Technical Resources and Design Support
We also provide professional technical support and document download services, including: package library download, datasheet download, reference circuit design materials, 3D model download, etc.
For technical assistance, please message us on WhatsApp or visit the sample request page to fill out the form. We will serve you as soon as possible.
Technical Support Email: voohu@voohuele.com WhatsApp: +86 133 5804 1040
Quality Certifications
VOOHU is ISO 9001 and ISO 14001 certified. Our main product lines are RoHS and REACH compliant, backed by third-party test reports, and selected RJ45 connector models carry a CE certificate.
For certificates and test reports, please visit the Download Center, or contact us and we will send you the documents you need.
ISO9001 ISO14001 RoHS REACH CE
Get a Quote or Samples
Whether you need sample testing, bulk purchasing or customized solutions, our sales team will respond quickly.
For samples, pricing or technical assistance, please visit the sample request page to fill out the form, or message us on WhatsApp. We will serve you as soon as possible.
Email: voohu@voohuele.com WhatsApp: +86 133 5804 1040
Get a Quote or Samples › Contact Us ›
VOOHU sales contact QR code
FAQ LAN Transformer: WHSQ48004-1PG
A

The datasheet defines the PoE capability of the WHSQ48004-1PG in two matching lines: PoE Support 30W, and each channel supports 720 mA of DC balance current. The 30 W is a device-side rating and not the power finally available at the PD, while the 720 mA belongs to each centre-tap path on its own; no port total or device total is published, so the figure must not be multiplied.

No IEEE 802.3 clause or PoE class name is quoted for the WHSQ48004-1PG, so compliance has to be established on the finished equipment rather than read off the device rating. Other options are listed in the 2.5G/5G BASE-T range.

A

One reel of the WHSQ48004-1PG holds 350 pieces. The part ships on a Ø330 mm carrier reel, with two reels to an inner carton at 700 pieces and two inner cartons to an export carton at 1400 pieces, so ordering in whole reels is the simplest route through production planning. Ask VOOHU to confirm any part-reel quantity and how it would be split.

No reflow profile and no MSL grade are printed on the WHSQ48004-1PG datasheet, so request the process document rather than reusing the curve published on another drawing in this range.

A

Take the WHSQ48004-1PG where the steady current in each channel stays within 720 mA, and move to the WHSQ48002-1PG only where a higher per-channel current is needed – it publishes 1000 mA per channel at a stated PoE Support 50W. Apart from the current rating the two are the same part on paper: package and pad layout, pin assignment, OCL with its 14 mA bias condition, insertion and return loss, crosstalk, common-mode rejection, the isolation test, the 0 °C to +70 °C operating range and the reel quantity are identical on the WHSQ48004-1PG and the WHSQ48002-1PG.

Switching does not change the signal-side design, only the centre-tap copper, and there is no performance reason to take the higher rating for margin alone.
