Common mode impedance
What the choke presents to common mode noise, quoted at a stated frequency. Compare candidates at the same frequency or the numbers do not correspond.
Induktivitätsprodukte

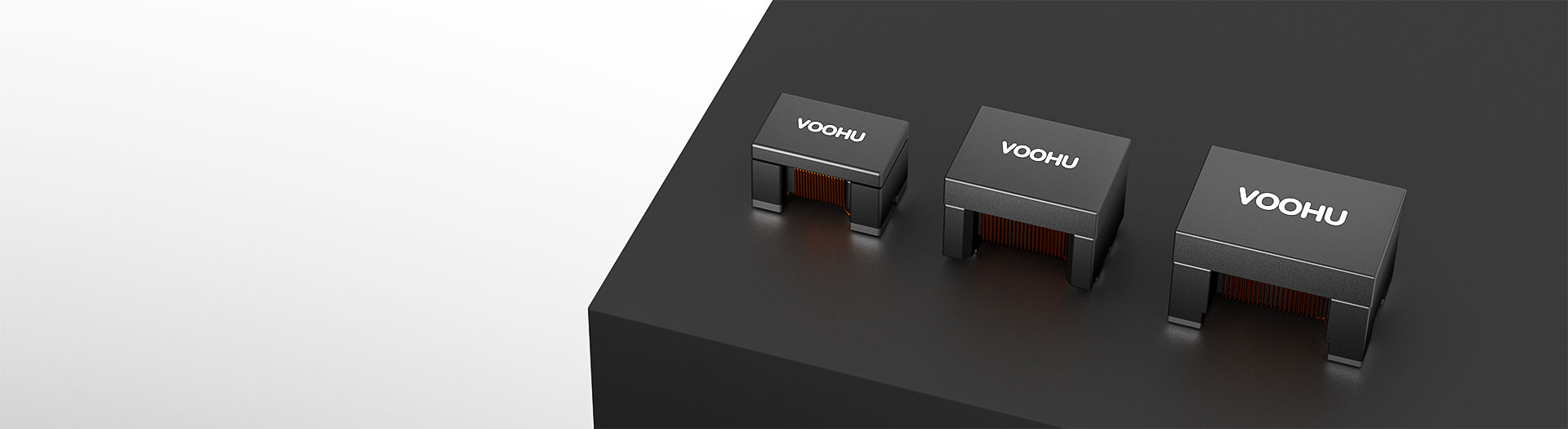

WH2012 Signal Line Common Mode Chokes
WH2012 is a compact part for differential pairs where board space between the traces is limited. Compare the impedance at the frequency your scan fails, then verify the eye diagram and return loss on your own link before committing.
Artikelsuche und Produktauswahl
Artikelnummern für WH2012 Signal Line Common Mode Chokes finden
Die Tabelle verwendet die aktuellen Produktdatensätze der englischsprachigen Website, veröffentlichte Auswahlfelder und artikelspezifische Links zu technischen Dateien.
* Spalten „Bild“ und „Artikelnummer“ fixiert · horizontal ziehen, um alle Spezifikationen anzuzeigen
| Bild | Datenblatt | Vergleichen | Downloads |
Baugröße
|
Gleichtaktimpedanz (10 MHz), min. Ω
|
Gleichtaktimpedanz (Ω typ.)
|
Induktivität (µH) +50/−30 %
|
RDC (Ω), max.
|
Streuinduktivität (nH), typ.
|
Isolationswiderstand (MΩ), min.
|
Nennstrom, max.
|
Nennspannung (V), max.
|
Muster |
|---|
| Bild | Artikelnummer | Datenblatt | Vergleichen | Downloads | Baugröße | Gleichtaktimpedanz (10 MHz), min. Ω | Gleichtaktimpedanz (Ω typ.) | Induktivität (µH) +50/−30 % | RDC (Ω), max. | Streuinduktivität (nH), typ. | Isolationswiderstand (MΩ), min. | Nennstrom, max. | Nennspannung (V), max. | Muster |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WHLC-2012A-121T1 | SPEC | 2012 | - | 120 | - | 0.3 | - | 10 | 400mA | 125 |
|
||
|
|
WHLC-2012A-381T0 | SPEC | 2012 | - | 380 | - | 0.45 | - | 10 | 300mA | 50 |
|
||
|
|
WHLC-2012A-900T0 | SPEC | 2012 | - | 90 | - | 0.35 | - | 10 | 300mA | 50 |
|
||
|
|
WHLC-2012A-181T0 | SPEC | 2012 | - | 180 | - | 0.35 | - | 10 | 300mA | 50 |
|
||
|
|
WHLC-2012A-261T0 | SPEC | 2012 | - | 260 | - | 0.4 | - | 10 | 300mA | 50 |
|
||
|
|
WHLC-2012A-361T1 | SPEC | 2012 | - | 360 | - | 0.45 | - | 10 | 300mA | 50 |
|
||
|
|
WHLC-2012A-801T0 | SPEC | 2012 | - | 800 | - | 0.88 | - | 10 | 300mA | 50 |
|
||
|
|
WHLC-2012A-102T0 | SPEC | 2012 | - | 1000 | - | 1.3 | - | 10 | 300mA | 50 |
|
||
|
|
WHLC-2012A-122T0 | SPEC | 2012 | - | 1200 | - | 1.5 | - | 10 | 300mA | 50 |
|
||
|
|
WHLC-2012A-750C | SPEC | 2012 | - | 75 | - | 0.55 | - | 10 | 280mA | 50 |
|
||
|
|
WHAC-2012A-801T0 | SPEC | 2012 | - | 800 | - | 0.88 | - | 10 | 300mA | 50 |
|
||
 |
WHAC-2012A-900T0 | SPEC | 2012 | - | 90 | - | 0.35 | - | 10 | 300mA | 50 |
|
||
|
|
WHLC-2012A-121T0 | SPEC | 2012 | - | 120 | - | 0.3 | - | 10 | 400mA | 50 |
|
Keine passenden Artikelnummern
Erweitern Sie die ausgewählten Filter oder löschen Sie die aktuelle Suche.
By interface
Chokes by interface: USB, CAN, Ethernet, HDMI
The interface sets the data rate and therefore what the choke is allowed to do to the signal.
So wählen Sie aus
Selecting a signal line common mode choke in four steps
Interface first, then the failing band, then signal integrity, then the footprint.
- 01
Start from the interface
USB, CAN bus, Ethernet and HDMI each set a data rate and a signalling scheme. That determines how much the choke is allowed to affect the signal.
- 02
Find the failing band
Read the frequency range where the radiated or conducted scan exceeds the limit, then look for a part whose impedance is high across that range.
- 03
Protect the signal
Check the impedance peak does not sit near your signal's fundamental, and that DC resistance does not add unacceptable loss on the pair.
- 04
Verify on the real link
Measure the eye diagram and return loss on your own board. Datasheet curves are taken in a reference fixture, not in your layout.
Parameters
Reading signal line choke ratings
Impedance is quoted at a frequency; so is everything else that matters here.
Nennstrom
Matters when the pair also carries bias or power, as on some bus and PoE-adjacent designs. On a pure signal pair it is rarely the binding constraint.
DC resistance
Adds loss in the signal path and causes a voltage drop where the pair carries current. Read the maximum figure rather than a typical value.
Differential mode loss
How much of the wanted signal the part removes. Low values matter more as the data rate rises; verify by measurement rather than by datasheet alone.
Package size
Sets the board area and the spacing available between the differential traces. Smaller packages ease layout but usually offer lower impedance.
Mode conversion
Asymmetry between the two windings turns common mode into differential noise. It is the reason a choke can make an eye diagram worse rather than better.
Vergleichen
Signal line choke families side by side
Package size and impedance level separate the families; the interface decides which fits.
Zur Produktauswahl zurückkehren ↑| Baugröße | Artikelnummern | Gleichtaktimpedanz (10 MHz), min. Ω | Gleichtaktimpedanz (Ω typ.) | Induktivität (µH) +50/−30 % | RDC (Ω), max. | Streuinduktivität (nH), typ. | Isolationswiderstand (MΩ), min. | Nennstrom, max. | Nennspannung (V), max. | Aktion |
|---|---|---|---|---|---|---|---|---|---|---|
| 2012 | 13 | - | 120, 1200, 1000, 800, 380, 360, 260, 180, 90, 75 | - | 0.3, 0.35, 0.4, 0.45, 0.55, 0.88, 1.3, 1.5 | - | 10 | 280mA, 300mA, 400mA | 50, 125 | Filtern → |
| 3225 | 6 | 300, 500, 1000, 2200, - | 550, 1100, 2600, 5100, - | 11, 22, 51, 80, 100, 200 | 0.8, 1, 1.6, 2.5, 4, 4.9 | 50, 70, 130, 180, - | 10 | 70mA, 150mA, 200mA, 250mA, 300mA | 80 | Filtern → |
| 4532 | 21 | 300, 500, 1000, 2000, - | 600, 1200, 2800, 5800, 90±25%, 420±25%, 600±25%, 800±25%, 1000±25%, 1400±25%, 1400 | 11, 22, 51, 100, - | 0.25, 1.2, 1.4, 1.8, 2.5, 39, 60, 82, 89, 113, 148 | 50, 80, 150, 200, - | 10 | 150mA, 200mA, 250mA, 700mA, 1.0A, 1.5A, 1.8A, 2.0A, 2.2A, 3.0A | 50 | Filtern → |
Anwendungsprüfung
Where signal line common mode chokes are fitted
Confirm the interface, the data rate and whether the pair also carries bias current.
USB data lines
- Confirm the USB generation and its data rate, then verify the eye diagram and return loss on the real board after fitting the choke.
CAN bus and automotive networks
- Check the bus common mode voltage range and whether the pair carries bias, then confirm the part's temperature rating suits the environment.
Ethernet interfaces
- Confirm the link speed and how the choke interacts with the LAN transformer already in the path, then measure link stability and emissions.
HDMI and display links
- High rates make insertion loss and mode conversion critical. Measure the eye before and after rather than relying on the datasheet curve.
Documents
Signal line choke datasheets and drawings
Datasheets carry the impedance curve, DC resistance and recommended land pattern.
Es werden repräsentative verfügbare Dateisätze angezeigt. Suchen Sie nach einer bestimmten Artikelnummer.
WHLC-2012A-121T12012
WHLC-2012A-381T02012
WHLC-2012A-900T02012
WHLC-2012A-181T02012
WHLC-2012A-261T02012
WHLC-2012A-361T12012
- 13
- Aufgeführte PDF-Datenblätter
- 13
- Aufgeführte 3D-Dateisätze
- 13
- Aufgeführte PCB-Footprints
Die veröffentlichten Produktinhalte von VOOHU werden vom technischen Team geprüft. Spezifikationen, Downloads und Informationen zum technischen Support sind bestimmten Artikelnummern zugeordnet, sodass Sie sie vor einer Muster- oder Angebotsanfrage prüfen können.
Kategorieübersicht
Choosing a common mode choke for a differential pair
On a power line the choke only has to pass current. On a signal pair it has to pass a waveform intact, which makes the selection harder.
Neues Design besprechen
FAE für eine Ersatztypenprüfung kontaktieren.
Sie haben bereits eine Artikelnummer? Muster oder Angebot anfragen.
Why the interface comes first
A choke that works on a CAN bus can wreck a USB link, because the data rates differ by orders of magnitude. The interface sets how much insertion loss and how much impedance in the signal path the link can tolerate. Decide the interface and its rate before you start comparing impedance figures.
Where the impedance peak sits
You want high common mode impedance across the band that fails your scan, and low impact at your signal's own frequencies. If the peak sits near the fundamental, the choke will attenuate the wanted signal as well as the noise. Read the curve, locate your two frequencies on it, and check they are far apart.
Mode conversion is the hidden risk
Real parts are never perfectly symmetric. Any imbalance between the two windings converts common mode noise into differential noise, which lands directly on the signal. This is why a choke sometimes makes an eye diagram worse. It cannot be predicted from the datasheet, so measure the eye and return loss on your own board.
FAQ
Signal line choke questions engineers ask
Answers cover interface fit, eye diagram impact and how to compare candidates.
What interfaces does WH2012 suit?
It suits differential pairs where space between the traces is tight. Whether it fits a specific interface depends on the impedance curve and how much insertion loss the link tolerates, so send the interface and data rate and our engineers will confirm rather than judging by package size alone.
How do I compare it with other parts in the 2012 band?
Read each candidate's common mode impedance at the frequency your emission scan fails, then compare DC resistance and the recommended land pattern. Shared package size means the footprints are similar; it says nothing about the impedance curve or the symmetry between windings.
Does DC resistance matter on a signal pair?
It adds loss in the signal path, and where the pair also carries bias current it causes a voltage drop and some heating. Read the maximum figure from the datasheet rather than a typical value, then judge it against the link budget your interface allows.
Will it affect my eye diagram?
Possibly. Real parts have some asymmetry and parasitic effects, which produce insertion loss and mode conversion, and both grow with data rate. Measure the eye and return loss on the target board with and without the part rather than relying on common mode impedance alone.
How do I request samples or a quote?
With a complete part number, send the part number, quantity, delivery region and the date you need it. If you are still selecting, send the interface, the data rate and the frequency band where your scan fails, and a sales engineer will confirm candidates first.
Technischer Support
Nach der Produktauswahl fortfahren
Senden Sie die Artikelnummer des Kandidaten und die zu prüfende Bedingung. Muster können nach Abschluss der Auswahl angefragt werden; kaufmännische Fragen lassen sich im selben technischen Austausch klären.
- 1Ausgewählte Artikelnummern
- 2Technische Prüfung
- 3Musteranfrage
- 4Kaufmännische Abstimmung
Für eine Ersatztypenprüfung
- Originalteil und Datenblatt
Dokumentrevision angeben
- Betriebsbedingungen
Temperatur, Isolationsspannung und Bezugsgrundlage für den PoE-Strom
- Gehäusevorgaben
Pinzahl, Rastermaß und Abstand zwischen den Pinreihen
- Projektphase und Jahresstückzahl
Zur Priorisierung von Mustern und Evaluierung
- Gewünschter Prüftermin
Zeitpunkt, zu dem Sie Kandidaten und einen Vergleich der Unterschiede benötigen
Die technische Prüfung ermittelt geeignete Kandidaten und erläutert die Unterschiede.
Für Muster und ein Angebot
- Kandidaten-Artikelnummern
Aus der Produktauswahl oder technischen Prüfung
- Menge und Projektphase
Prototyp / Pilotserie / Serienfertigung
- Benötigter Liefertermin
Zeitplan für Muster und Serie getrennt angeben
- Benötigte Unterlagen
Konformitätsnachweise, Materialdeklarationen oder Berichte Dritter
Mustermenge, Lieferzeit und Kosten hängen von der Projektphase und der Artikelnummer ab. Der Vertrieb antwortet an Werktagen.
