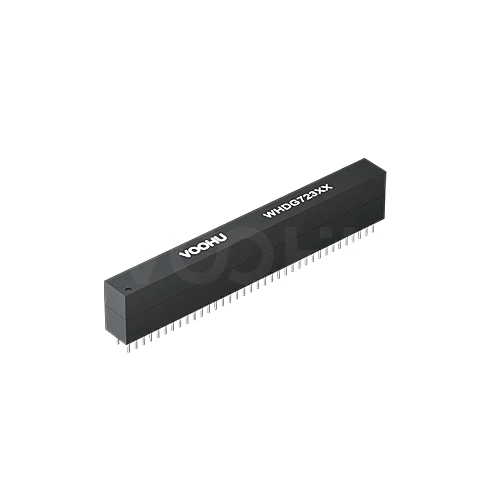

WHDG72303G Quad Ports DIP Gigabit Base-T PIN72 non-PoE LAN Transformer
Request a Quote
Leave your details and we will send a tailored volume quote.
Our sales team will contact you within 1 business day.
Contact Sales
Reach our sales team for pricing and lead time.
Submitted
We have received your request. Our sales team will contact you within 1 business day.
For technical assistance, pleaseclick the button below to add customer service or visit the sample request pageto fill out the form. We will serve you as soon as possible.
Technical Support Email: fae.thorne@voohu.cn Phone: +86 400-1048-018
For more details, please visit theDownload Centerto get documents or click the button below to add customer service. We will serve you as soon as possible.
For purchases and small-volume orders, please contact our sales team. We support VAT general/special invoices with a convenient and efficient process.
For technical assistance or sample requests, pleaseclick the button belowto add customer service orvisit the sample request pageto fill out the form. We will serve you as soon as possible.
Customer Service Email: song.lei@voohu.cn Phone: +86 180 2130 1120
Electrically and mechanically the two are the same part; choose purely by which side the common-mode choke should land on — the WHDG72303G puts it on the pin 1–18 and 19–36 side, theWHDG72301-1Gon the pin 37–54 and 55–72 side.
Swapping after the design is fixed costs no footprint work, but the EMC test has to be repeated on the finished unit: the element order changed, and so did the common-mode path.
Solder wave at 255 °C to 265 °C with a dwell of 3.0 to 5.0 s.
Preheat runs at 100 °C to 110 °C for 60 to 90 s; after the wave the part comes down below 90 °C within 30 to 50 s, with the ramp rate held to 5 °C per second. The WHDG72303G is a through-hole part and needs no line change beyond running this profile. Surface-mount alternatives sit in the100/1000 BASE-T range.
No. The WHDG72303G is a non-PoE part: its centre taps serve only as AC termination and common-mode reference and carry no DC supply current, so all four ports are powered locally.
A design that has to deliver PoE needs a part rated for per-channel DC current, chosen at selection time rather than worked around this one. PoE-rated options are grouped in the100/1000 BASE-T range.
