WHSG24R02C0 100/1000 BASE-T Single Port 24PIN
Request a Quote
Leave your details and we will send a tailored volume quote.
Our sales team will contact you within 1 business day.
Contact Sales
Reach our sales team for pricing and lead time.
Submitted
We have received your request. Our sales team will contact you within 1 business day.
For technical assistance, pleaseclick the button below to add customer service or visit the sample request pageto fill out the form. We will serve you as soon as possible.
Technical Support Email: fae.thorne@voohu.cn Phone: +86 400-1048-018
For more details, please visit theDownload Centerto get documents or click the button below to add customer service. We will serve you as soon as possible.
For purchases and small-volume orders, please contact our sales team. We support VAT general/special invoices with a convenient and efficient process.
For technical assistance or sample requests, pleaseclick the button belowto add customer service orvisit the sample request pageto fill out the form. We will serve you as soon as possible.
Customer Service Email: song.lei@voohu.cn Phone: +86 180 2130 1120

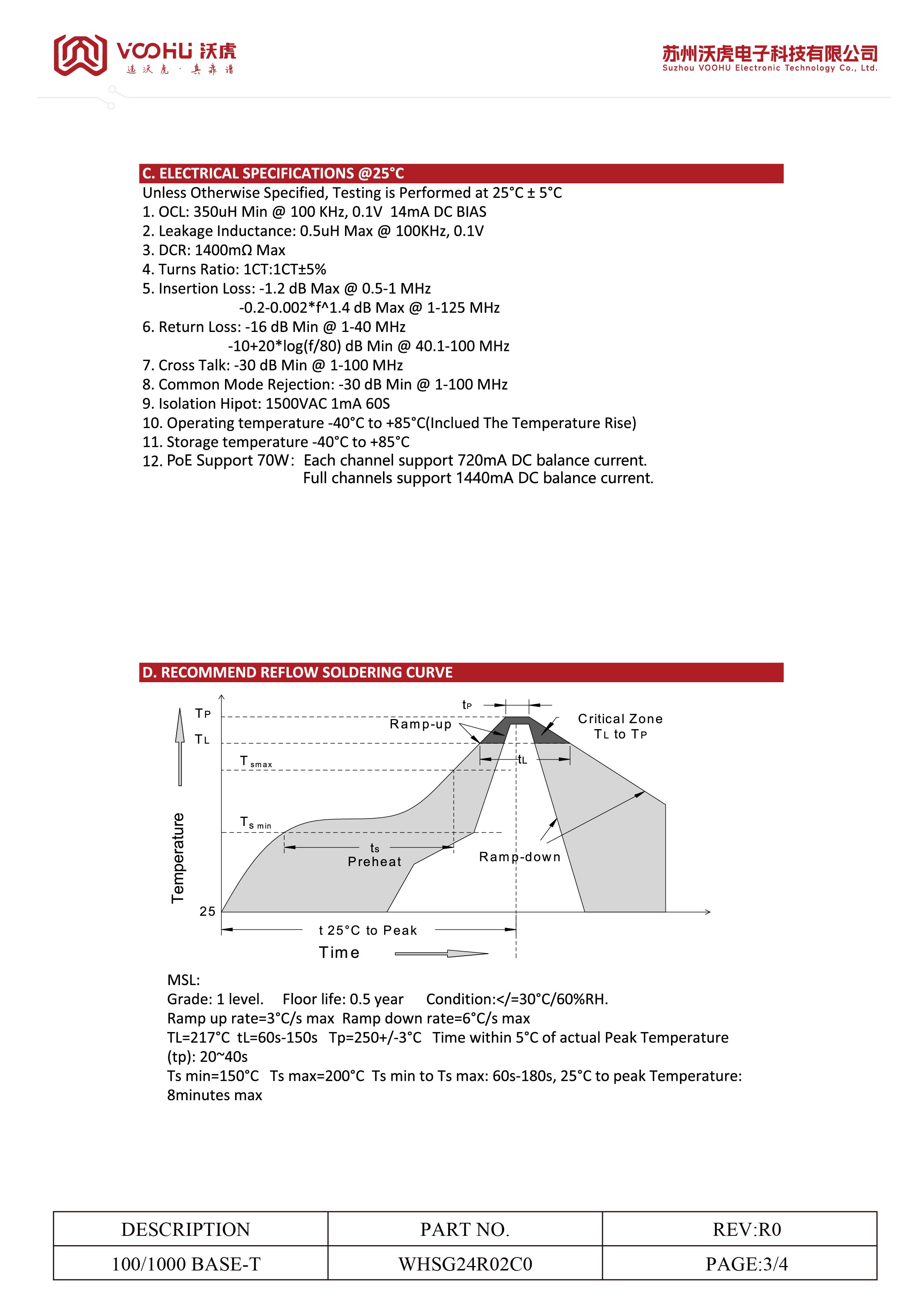

Yes, but the -40 °C to +85 °C rating of the WHSG24R02C0 already includes the component's own temperature rise, so budget against ambient plus self-heating staying within +85 °C rather than reading it as an allowable ambient.

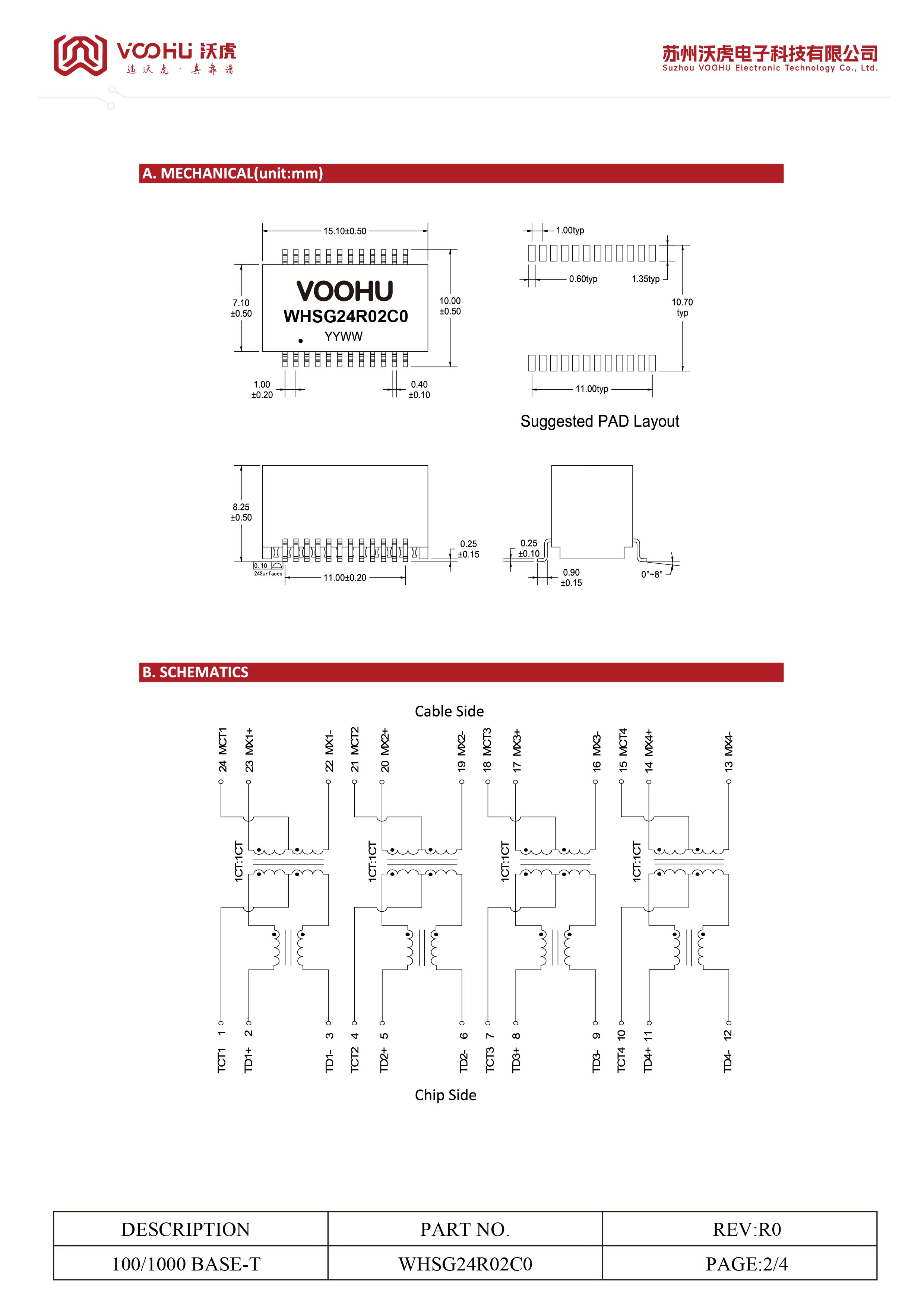

The four centre taps: MCT1, MCT2, MCT3 and MCT4 on the cable side at pins 24, 21, 18 and 15, and TCT1 to TCT4 on the chip side at pins 1, 4, 7 and 10.Size all four paths evenly against the 720 mA per-channel figure – the 1440 mA full-channels rating is the total of the port's two channels, not headroom that can be concentrated into one or two traces. These pin numbers apply to the WHSG24R02C0 only; re-check the schematic on any substitution. Other options are in the10/100/1000 BASE-T range.
No. The WHSG24R02C0 has a 1.00 mm pin pitch against the 1.27 mm used by most 24-pin Gigabit parts in this range, so the land patterns are not interchangeable.
