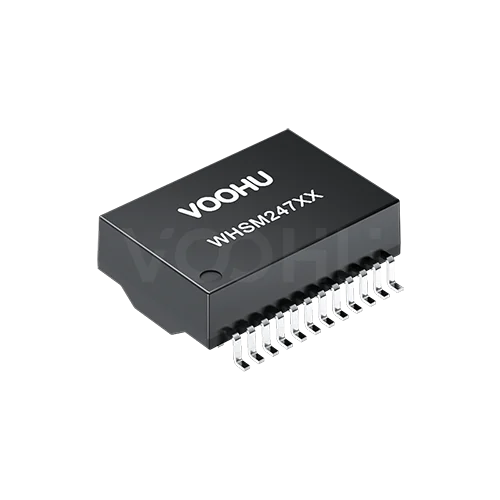

WHSM24706-2PG Single Port SMD 10G PIN24 4PPoE LAN Transformer
Request a Quote
Leave your details and we will send a tailored volume quote.
Our sales team will contact you within 1 business day.
Contact Sales
Reach our sales team for pricing and lead time.
Submitted
We have received your request. Our sales team will contact you within 1 business day.
For technical assistance, pleaseclick the button below to add customer service or visit the sample request pageto fill out the form. We will serve you as soon as possible.
Technical Support Email: fae.thorne@voohu.cn Phone: +86 400-1048-018
For more details, please visit theDownload Centerto get documents or click the button below to add customer service. We will serve you as soon as possible.
For purchases and small-volume orders, please contact our sales team. We support VAT general/special invoices with a convenient and efficient process.
For technical assistance or sample requests, pleaseclick the button belowto add customer service orvisit the sample request pageto fill out the form. We will serve you as soon as possible.
Customer Service Email: song.lei@voohu.cn Phone: +86 180 2130 1120
The WHSM24706-2PG is rated PoE Support 60W, with 1200 mA of DC balance current per magnetic channel and 2400 mA across full channels.The 2400 mA figure is what the port carries with its two channels working together – not the rating of any single centre-tap path, and not 1200 mA multiplied by the coil count.
Size four balanced copper paths against 1200 mA each, taking the width from your actual copper thickness and permitted rise. Both figures are per VOOHU's current controlled documents.
No. The WHSM24706-2PG operates from 0 °C to +70 °C; the -25 °C to +125 °C figure is its non-powered storage range only.A wide storage range says the part survives a larger temperature span while unpowered, which is a different thing from electrical performance and service life under power.
Design the thermal budget and the cold power-up case against 0 °C to +70 °C. If the equipment must power up below 0 °C, move to a wide-temperature part whose operating range reaches -40 °C; the choices are listed in the10G BASE-T range.
Choose on how much current each centre-tap path has to carry: the WHSM24706-2PG supports 1200 mA per magnetic channel and theWHSM24P02-1PGsupports 720 mA.Both figures use the same scope – DC balance current per magnetic channel – so they compare directly.
The PoE positioning differs too: PoE Support 60W on the WHSM24706-2PG, IEEE 802.3at compliant performance on the other part. Little else separates them: both operate from 0 °C to +70 °C and share the same 10G electrical block, so the choice comes down to supply capability.
