[New Product Recommendation] CAT6A 10 Gigabit Waterproof RJ45 Coupler Male and Female

VOOHU Electronics officially launches two new coupler male and female connectors WHKNZ63YSCAT6a and WHKNZ63CAT6a180, which feature 10 Gigabit (CAT6A) transmission rate, adopt an industrial-grade metal shell design, support PoE power supply, and are targeted at connection scenarios with high speed and reliability requirements such as industrial Ethernet, outdoor security and PoE front-end.

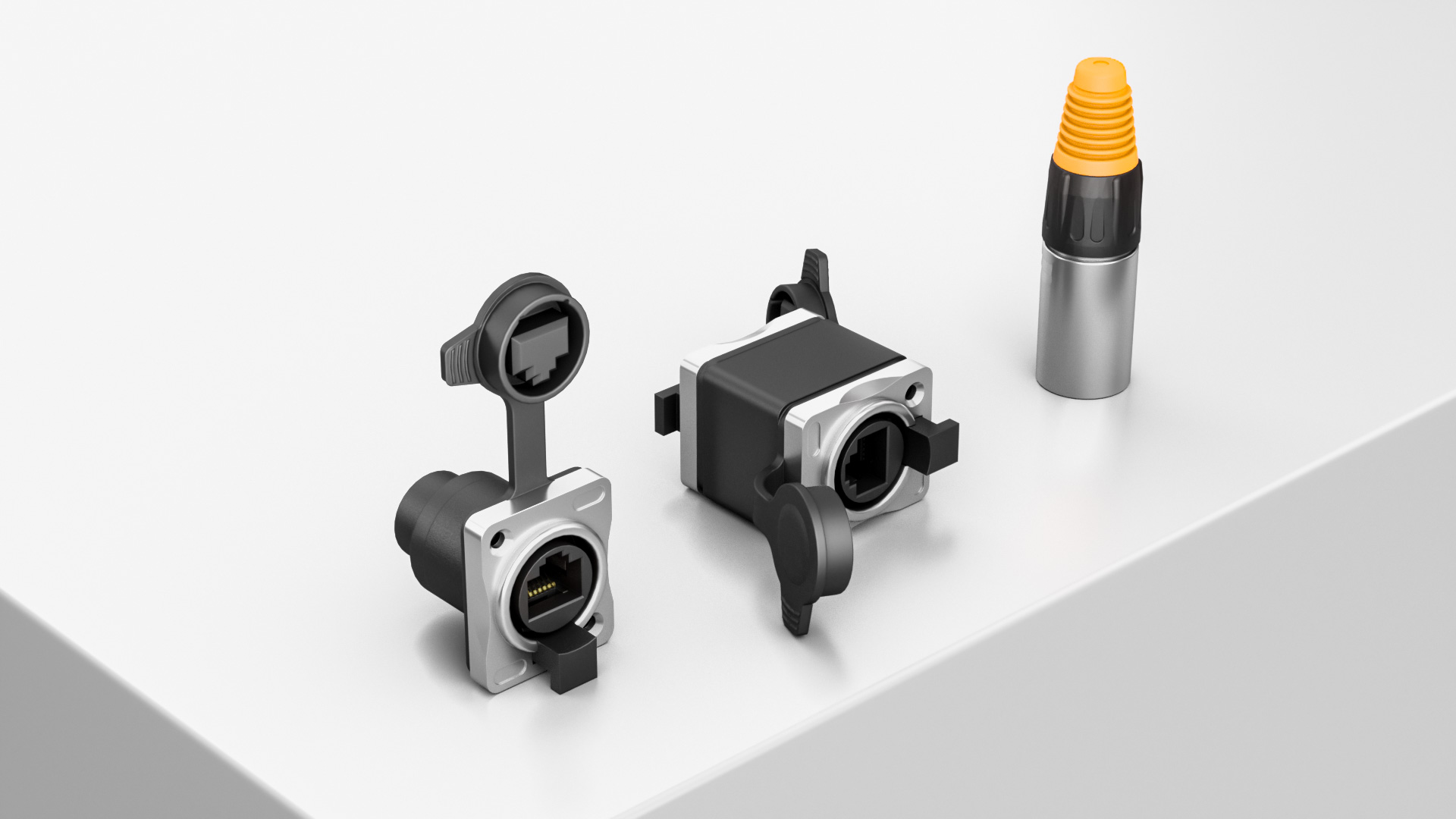

The metal male connector WHKNZ01000FS is an existing product of VOOHU and can be used with two new products.

For product selection and technical support, please visit the VOOHU official platform WWW.VOOHU.CN for help or send us a private message in the background. Our technical engineers will solve the problem for you as soon as possible.

New product introduction
This time, two coupler male and female connectors are released, both focusing on 10 Gigabit transmission rate (Cat 6A / Class EA) and using the same series design. The main difference lies in the number of matching metal male connectors:

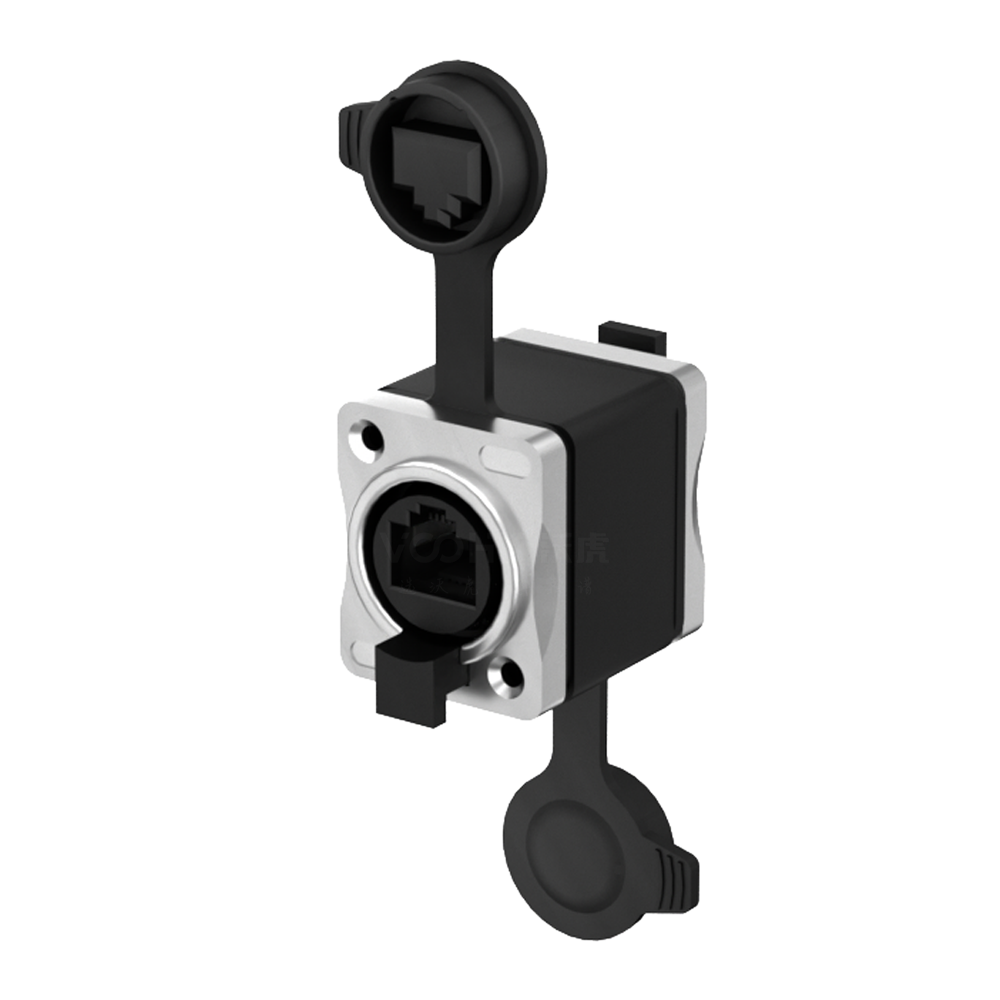

Coupler male and female base · WHKNZ63YSCAT6a
·What it is: CAT6A 10G RJ45 coupler male and female (network adapter)
·Paired use: Requires 2 metal male connectors
·Main function: 10G transmission rate (10G/CAT6A)
·Certification: Passed Fluke DSX-5000 permanent link CAT6A test
·For more detailed parameters, please contact VOOHU to obtain

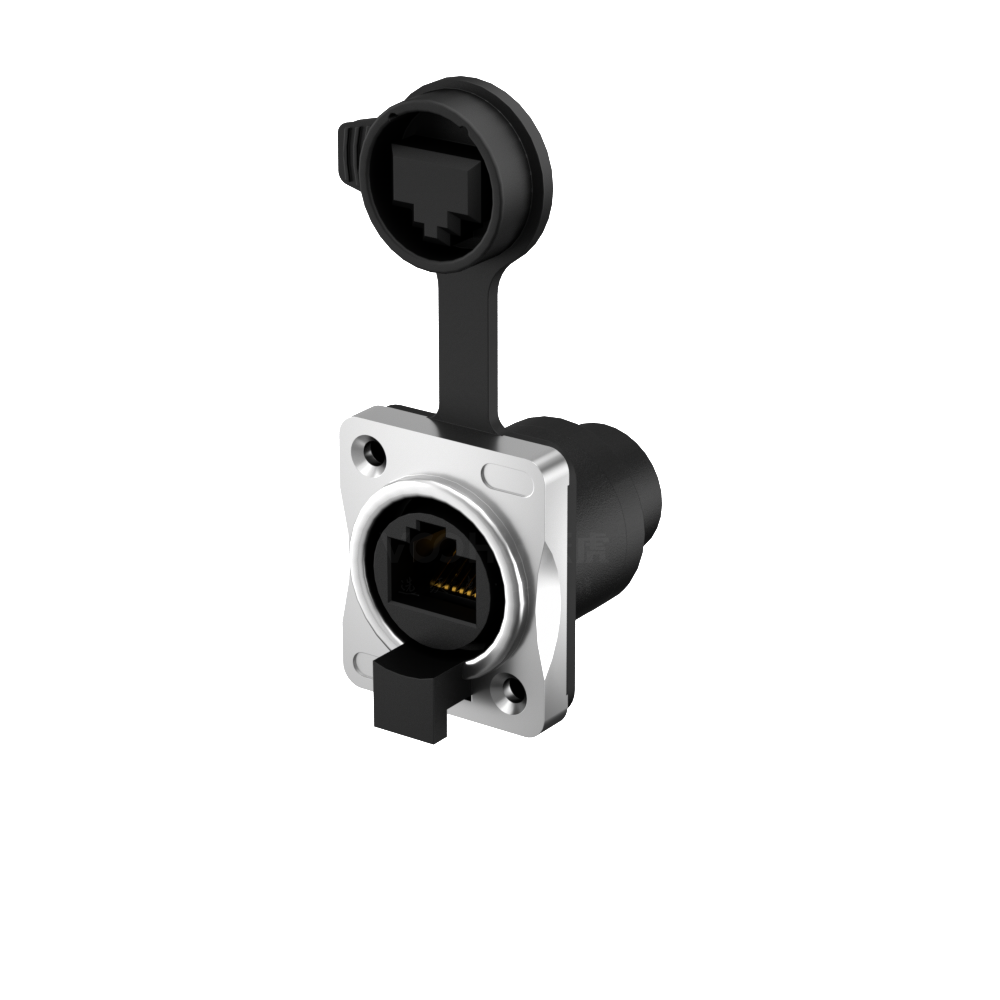

Coupler male and female base · WHKNZ63CAT6a180
·What it is: CAT6A 10G RJ45 coupler male and female (180° straight-through)
·Paired use: Requires 1 metal male connector
·Main function: 10G transmission rate (10G/CAT6A)
·For more detailed parameters, please contact VOOHU to obtain

Technical parameters

The following parameters are detailed specifications of WHKNZ63CAT6a180; WHKNZ63YSCAT6a adopts the same series of CAT6A design. Please contact VOOHU for detailed parameters.
·Interface: RJ45 8P8C
·Category: Cat 6A/Class EA
·Transmission rate: 10Gbps @ 100m (10GBASE-T)
·Bandwidth: 550MHz
·PoE power supply: IEEE 802.3bt (PoE++), ≤60W
· Cabling: UTP/STP
·Exit direction: 180° straight through
·Rated current: 1.5A
·Working voltage: AC 30V/DC 48V/60V
·Contact resistance: <50mΩ
·Insulation resistance: >0.5GΩ
·Withstand voltage: 1kVdc
·Contact material: Phosphor bronze with gold plating
·Plug and unplug life: >1000 times
·Insertion/pull-out force: 20N
·Protection level: IP65
·Operating temperature: −30℃ ~ +80℃
·Flame retardant grade: UL94 V-0
·Comply with standards: TIA/EIA-568-C.2; ISO/IEC 11801 (Class EA); EN 50173-1

Core features
·10 Gigabit transmission: Cat 6A/Class EA, supports 10GBASE-T, 10Gbps transmission to 100m, bandwidth 550MHz.
·Industrial-grade protection: Metal shell shielded to resist EMI, IP65 waterproof and dustproof, UL94 V-0 flame retardant.
·Wide temperature operation: −30℃ ~ +80℃, suitable for severe cold and high temperature conditions.
·PoE power supply: supports IEEE 802.3bt (PoE++), single port up to 60W.
·Durable contacts: phosphor bronze gold-plated contacts, plugging and unplugging life >1000 times, plug/pull force 20N.
· Authoritative certification: Passed Fluke DSX-5000 Permanent Link CAT6A test.

Application scenarios

Industrial Ethernet/Smart Manufacturing:
Production line equipment, machine vision, PLC network 10G backbone and connection
Outdoor security monitoring:
Waterproof 10G links for outdoor front-ends such as IP cameras and dome cameras
Outdoor PoE devices:
Wireless AP, base station, charging pile, etc., data power supply from one line to the end
Rail transit/port/new energy:
Reliable connection in harsh environments such as vibration, temperature changes, and moisture

Compliance and Certification

This product has been tested by Fluke DSX-5000 Permanent Link, passed CAT6A, and complies with the following international standards:
TIA/EIA-568-C.2 (Cat 6A)
ISO/IEC 11801 (Class EA)
EN 50173-1
UL 94 V-0 (Flame retardant)

FAQ
Does it support 10 Gigabit? How far can it run?
support. Cat 6A/Class EA, 10GBASE-T, 10Gbps transmission up to 100 meters, all tested with Fluke Cat 6A permanent link.
What is the level of protection? Can it be used outdoors?
The protection level is IP65, dust-proof and water-spray-proof, the working temperature is −30℃~+80℃, and it is suitable for outdoor and industrial sites.
Does it support PoE? What is the maximum power?
Supports IEEE 802.3bt (PoE++); up to 60W
How to obtain complete parameters and selection suggestions?
Welcome to contact VOOHU:
Official website www.voohu.cn, phone 400 1048 018, or leave a message through [Contact Us]/[Technical Support].
