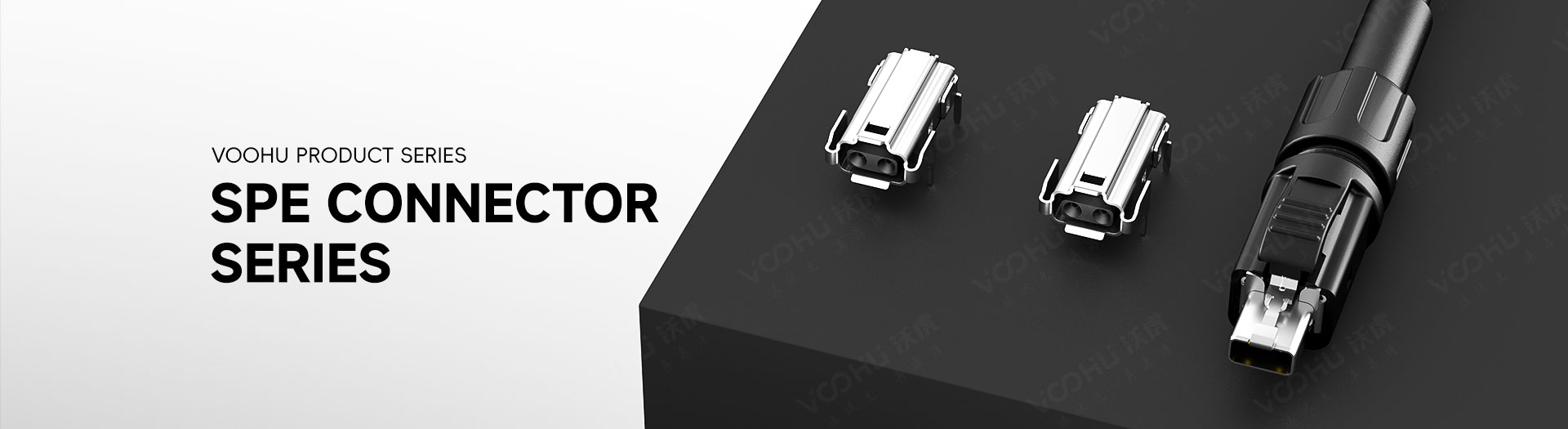

7 Pin SPE Connectors
Seven contacts combine the single data pair with power and several auxiliary signals in one connector, which suits field devices that would otherwise need more than one cable. Pin assignment is defined by the system, so confirm it before wiring.
Part number search & selector
Find 7 Pin SPE Connectors part numbers
The table uses the current English-site product records, published selection fields and part-specific technical-file links.
* Frozen Image and Part Number columns · drag horizontally to review all specifications
| Image | Datasheet | Compare | Downloads |
Contacts
|
Connector form factor
|
Rated current
|
Rated voltage
|
Termination method
|
Sample |
|---|
| Image | Part number | Datasheet | Compare | Downloads | Contacts | Connector form factor | Rated current | Rated voltage | Termination method | Sample |
|---|---|---|---|---|---|---|---|---|---|---|
 |
WHSPE00468 | SPEC | 2 PIN | Plug | 4A | 60V | Crimp |
|
||
 |
WHSPE00467 | SPEC | 2 PIN | Socket | 4A | 60V | THT |
|
No matching part numbers
Broaden the selected filters or clear the current search.
Product family quick links
Start with Contacts
Counts reflect the current published product data.
How to select
A practical selection sequence
Narrow the published fields in sequence, compare the remaining candidates and verify the part-specific files before design-in.
- 01
Define the target SPE interface
Specify the equipment PHY, mating interface, cable and any power-over-data requirement.
- 02
Choose cable or board termination
Review the crimp process for the cable end and the footprint and assembly process for the board end.
- 03
Verify pairing and ratings
Use controlled drawings to verify mating parts, clearances, temperature-rise and electrical conditions.
- 04
Request documents and validate samples
Review available files and validate samples; submit requirements even if some parameters or the final part are not yet defined.
Key selection parameters
What each filter helps you decide
Plug or socket
Distinguish cable and board ends and confirm pairing from specified drawings.
Termination method
For crimp termination, check wire size and tools; for PCB termination, check holes and solder process.
Current and voltage ratings
Read ratings with temperature-rise and environmental conditions; their product does not establish PoDL system power.
Interface and power compatibility
Confirm the interface-standard part, PHY, cable and PoDL requirements separately.
Product family comparison
Compare the published Contacts
Use this summary as a routing step, then verify every required value in the exact part-number row and linked technical files.
Return to the selector ↑| Contacts | Parts | Connector form factor | Rated current | Rated voltage | Termination method | Action |
|---|---|---|---|---|---|---|
| 2 PIN | 2 | Socket, Plug | 4A | 60V | THT, Crimp | Filter → |
Technical performance & application fit
Validate the complete design context
Application suitability is part-number specific. Treat the catalog fields as a shortlist, then confirm the design against the linked technical files.
Industrial sensor and actuator interfaces
- Assess the equipment interface, space, cable termination and power needs. An application example is not certification evidence.
Equipment PCB-to-cable connections
- Select the PCB socket and cable plug separately and confirm the mating relationship from drawings.
Downloads & technical resources
Find files by part number
Search a full or partial SKU, then open its datasheet, 3D model or PCB footprint without returning to the product table.
Showing representative available file sets. Search to find a specific SKU.
- 0
- PDF datasheets listed
- 0
- 3D file sets listed
- 0
- PCB footprints listed
VOOHU’s published product content is reviewed by its engineering team. Specifications, downloads and technical support information are tied to specific part numbers, so you can verify them before requesting samples or a quotation.
Category overview
Why Single Pair Ethernet, and what to confirm
SPE trades bandwidth for cable mass, and the interface is defined by a published standard rather than by contact count.
Discuss a new design
Contact FAE for a replacement assessment.
Already have a part number? Request samples or a quote.
One pair instead of two or four
A conventional copper Ethernet link uses two or four twisted pairs. Single Pair Ethernet carries the link on one, which cuts cable weight, diameter and connector size. That is the whole reason it exists, and it is why it suits sensors, field devices and vehicle harnesses where cable mass is a real cost.
Contact count does not define the interface
Two contacts is the minimum an SPE link needs, but several mating faces are published for different environments. Two connectors with two contacts each will not necessarily mate. Confirm which interface standard your network specifies, and confirm it for both ends of the link.
A deliberately narrow catalog
The current listing is a cable-side crimp plug and a board-side socket. If your design needs a different mating face, a screened version or a sealed body, send the standard and the environment rather than working around the parts listed here, and our engineers will confirm what can be supplied.
FAQ & related guides
Questions before design-in
These answers guide the page workflow. Part-specific engineering limits still come from the linked technical files.
What does a 7 pin version add?
Enough contacts to carry the data pair plus power and several auxiliary signals in one interface. That suits field devices which would otherwise need a separate power or signal cable, reducing the number of connectors and cable entries on the device.
How is the pin assignment defined?
By the system or device specification rather than by the connector itself. Contact count alone does not determine which pin does what, so two seven contact parts may be wired quite differently. Always confirm the assignment against the documentation for both ends.
What current can the power contacts carry?
A rating stated per contact on the datasheet, which may reduce when several contacts carry current simultaneously because of the combined heating. Check both the single contact rating and any derating for multiple loaded contacts against your actual load.
Is this still Single Pair Ethernet?
The Ethernet link is still carried on a single twisted pair, which is what defines SPE. The extra contacts serve power and auxiliary functions alongside it. The data interface itself is unchanged by the higher contact count.
How do I request samples or a quote?
With a complete part number, send the part number, quantity, delivery region and the date you need it. If you are still selecting, send the interface standard, the pin assignment required, the current per contact and the environment the connector faces.
Engineer support
Continue after product selection
Send the candidate part number and the condition you need reviewed. Sample support can be added after the selection is clear; commercial questions may be discussed in the same engineering conversation.
- 1Selected part numbers
- 2Engineering review
- 3Sample request
- 4Commercial discussion
For a replacement review
- Original part and datasheet
Include the document revision
- Operating conditions
Temperature, isolation voltage and PoE current basis
- Package constraints
Pin count, pitch and spacing between pin rows
- Project stage and annual volume
To help prioritize samples and evaluation
- Target review date
When you need candidates and a comparison of differences
Engineering review identifies candidate parts and explains the differences.
For samples and a quotation
- Candidate part numbers
From the selector or engineering review
- Quantity and project stage
Prototyping / pilot build / production
- Required delivery date
Specify sample and production timing separately
- Required documentation
Compliance documents, material declarations or third-party reports
Samples are free of charge. Sample quantity and lead time depend on the part number and project stage. Sales will respond on business days.
