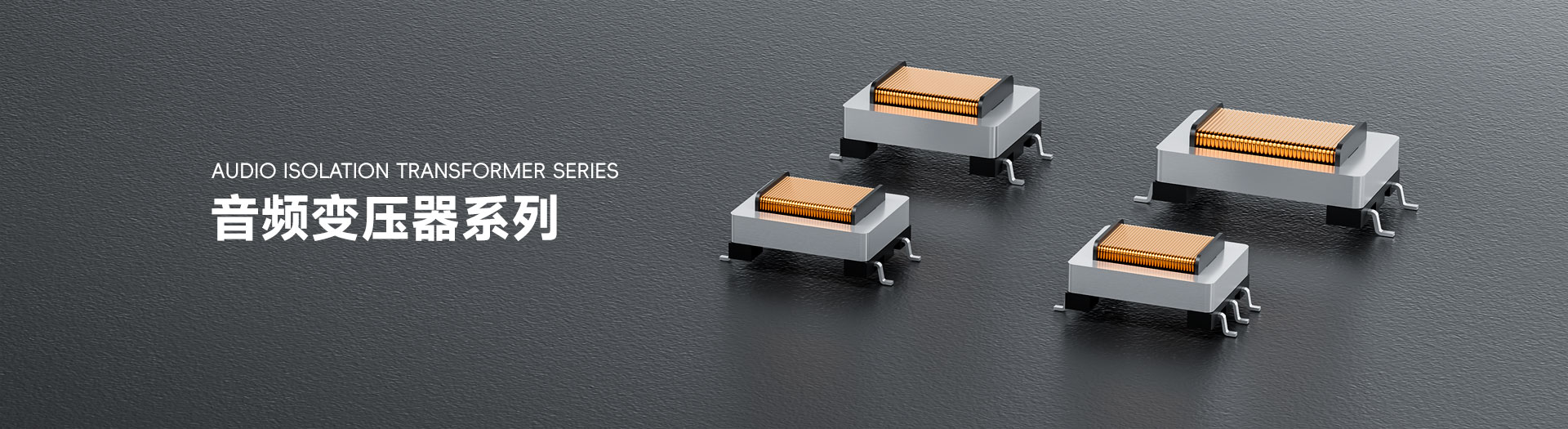

Audio transformers: a key component in professional audio systems

In audio systems, speakers and amplifiers are often the focus of discussion, while the audio transformer, a crucial component, is frequently overlooked. In reality, it plays an indispensable role in ensuring sound purity, reducing background noise, and expanding dynamic range.

Whether listening to music or engaging in conference calls, clear and pure sound often benefits from the isolation and matching of signals provided by the audio transformer. It achieves electrical isolation through electromagnetic coupling, effectively suppressing interference and ensuring the complete transmission of sound details.



1. Main Functions of Audio Transformers
Many people mistakenly believe that transformers are simply signal channels. This is not the case. In the professional audio field, they primarily perform the following three functions:
Noise Isolation
Ground loop noise is the number one enemy of audio equipment, often causing an annoying "humming" sound. Audio transformers, through the principle of electromagnetic coupling, establish a pure "electrical isolation barrier" between the input and output circuits. This barrier completely cuts off ground loops, keeping noise out and thus restoring a pure sound, making every subtle detail clearly discernible.

Impedance Matching
Different audio devices (such as microphones, mixing consoles, and amplifiers) have different internal impedances. Direct connection will cause a large amount of signal energy reflection, resulting in distortion and frequency loss. Audio transformers act as efficient "translators," precisely matching the impedance between different devices through their coil turns ratio, ensuring maximum signal energy transmission and releasing a full, powerful, and extremely low-distortion sound.

Circuit Protection
In complex power supply environments, surges, lightning strikes, and other unexpected voltage impacts constantly threaten expensive core equipment. Audio transformers, as indirect electrical connection components, effectively block DC components and high-voltage transient pulses, providing a reliable physical "firewall" for your mixing consoles, microphone preamps, and other precision equipment, greatly improving system stability and security.

2. Technical Factors Affecting Audio Transformer Performance
The performance of professional-grade audio transformers depends on several details of materials and manufacturing processes:
Core Material Secrets:
We use high-permeability, low-loss silicon steel sheets to ensure a flat frequency response across the entire audio range of 20Hz-20kHz, delivering stable bass, clear treble, and no phase distortion.

Winding Process:
Precise layered and segmented winding technology effectively reduces distributed capacitance and leakage inductance, which is key to achieving an extremely wide frequency response and extremely low distortion (THD+N < 0.1%).

Shielding Design:
A built-in high-permeability shielding layer provides a common-mode rejection ratio (CMRR) of over 60dB, resolutely resisting radio frequency interference (RFI) and electromagnetic interference (EMI) even in complex electromagnetic environments.

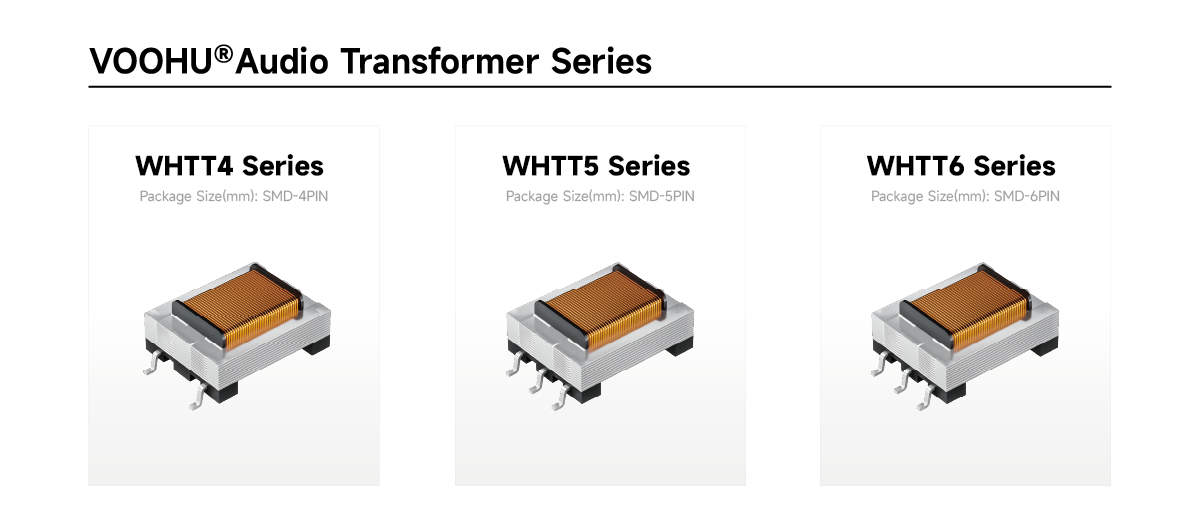

3. Product Parameters
Suzhou VOOHU Electronics Technology Co., Ltd. specializes in the R&D and manufacturing of magnetic components.
Full Range of Standard Products: Covering various impedance ratios from 600Ω to 10KΩ, meeting mainstream application requirements.
Deeply Customized Solutions: Tailored design and manufacturing can be implemented based on your equipment characteristics, space constraints, and special performance requirements (such as military or broadcast-grade standards).
Full FAE Technical Support: Our team of application engineers will provide you with comprehensive services from selection and commissioning to fault analysis.



4. Typical Application Scenarios of Audio Transformers
From top-tier art galleries to everyday business spaces, audio transformers are ubiquitous:
Recording Studios: Used for microphone amplifiers, analog synthesizers, and other equipment to ensure pure sound sources.
Live Performances: Connect to DI boxes and mixing consoles, supporting stable signal transmission over long distances.
Public Addressing and Conference Systems: Improve speech clarity and suppress ambient noise.
Home Theaters: Enhance sound field detail and sound localization.


Founded in 2018 and with its overseas expansion planned for 2025, VOOHU Electronics has become a reliable partner for over 1000 companies thanks to its "superior quality, reasonable prices, attentive service, and reliable delivery."

If you're also looking for a "worry-free, cost-effective, and convenient" supplier of communication electronic components, consider VOOHU. After all, the choice of over 100 listed companies is a sure bet.

Choose VOOHU – truly reliable. This isn't just a slogan; it's the answer written with the trust of over 1000 customers over 8 years.
