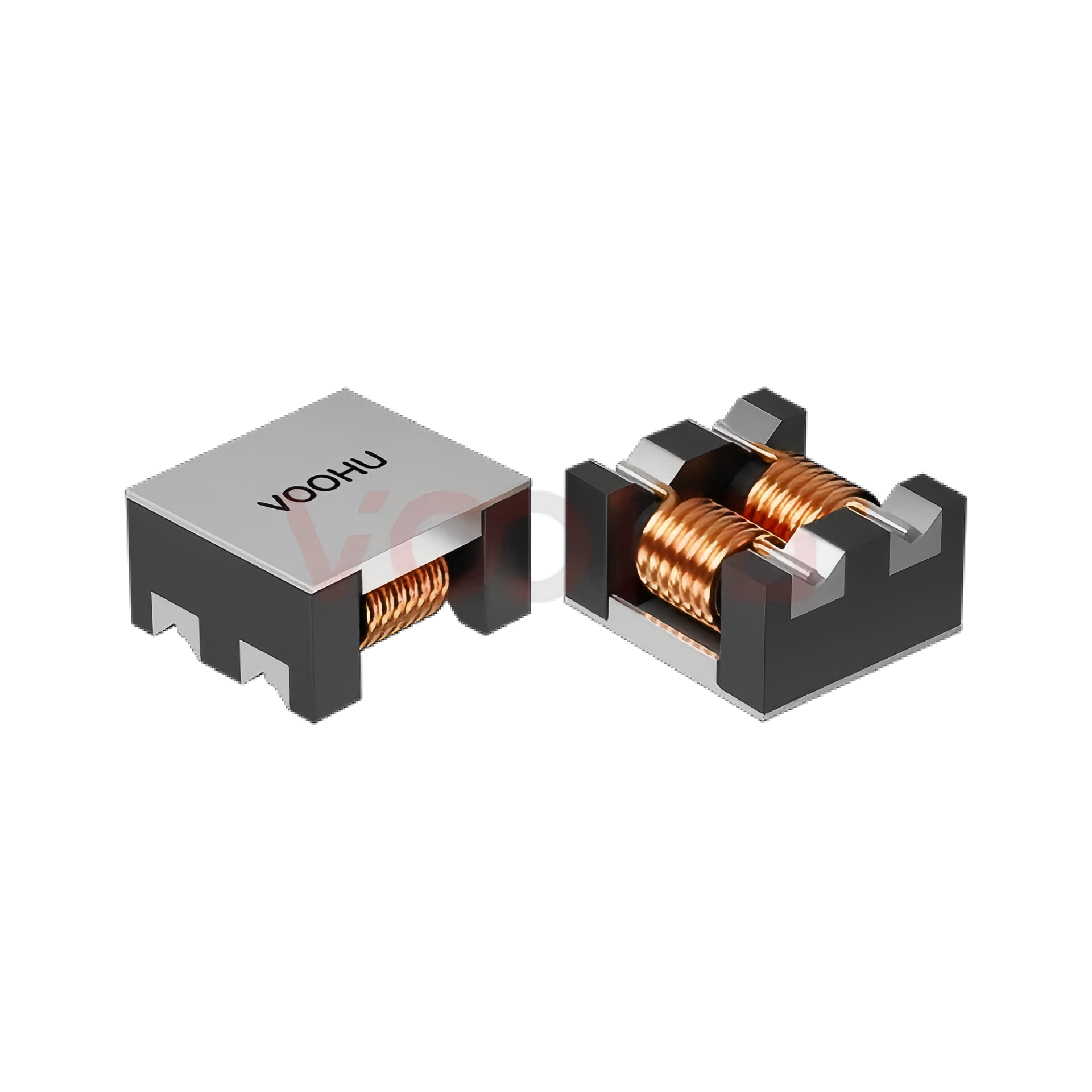

WHPL-1211A-231T0 DC resistance max. 4 Rated DC current max. 10 Insulation resistance min. 10 Common mode inductor for power line
Common mode choke for power line（Power Line CMC）
WHPL-1211A-231T0 Common mode choke for power line（Power Line CMC）
Left click: Rotate | Right click: Pan | Scroll: Zoom
When you click Get a Quote or Samples or Add to Inquiry, part number WHPL-1211A-231T0 is filled in automatically.
Request a Quote
Leave your details and we will send a tailored volume quote.
Our sales team will contact you within 1 business day.
Contact Sales
Reach our sales team for pricing and lead time.
Sales Hotline: +86 133 3865 5578
Email: voohu@voohuele.com
✓
Submitted
We have received your request. Our sales team will contact you within 1 business day.
01Specifications
WHPL-1211A-231T0 specifications
ParameterValue
Dimensions(L*W*H MAX)
1211
Z(Ω) 100MHz/0.1V Min.
80
Z(Ω) 100MHz/0.1V Ref.
230
DC Resistance (mΩ) Max.
4
Rated DC Current (A)Max.
10
Insulation Resistance (MΩ)Min.
10
Rated Voltage (V)Max.
125
Values are taken from published parameters; the datasheet prevails.
