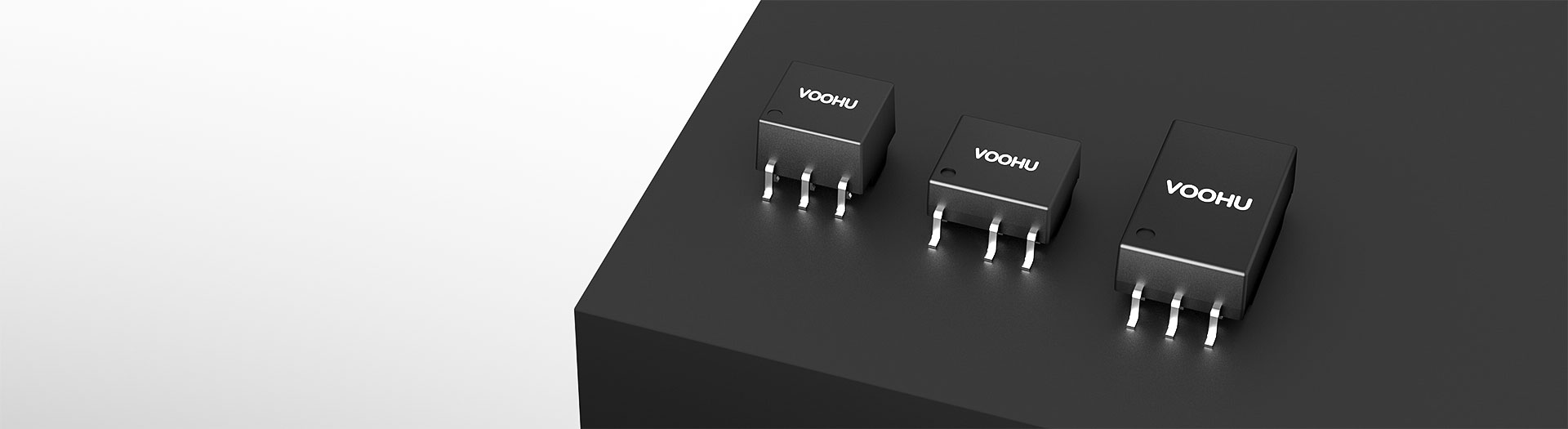

BMS Isolation Transformers

These products are selected for communication signal coupling and isolation, not power output. For an isolated supply or active battery balancing, first establish the topology, power and controller requirements, then select the appropriate power or balancing magnetics. The BMS transformer name alone does not establish suitability.

Count the transformer channels required by the communication schematic and review their connections, footprint, pinout and insulation requirements. A single-channel part is a starting point for one-channel matching; a dual-channel part can be evaluated for a two-channel design. Dual channel does not automatically establish redundancy or protocol qualification.

They describe different conditions. Working voltage concerns the specified operating insulation conditions; isolation test voltage applies between defined terminals for a stated duration. Do not infer one from the other or combine ratings from different parts. Use the same part-specific datasheet and the system insulation requirements.

Matching turns ratio or pin count does not establish interchangeability. The presence, location and characteristics of the common mode choke affect the link; external filtering, termination and protection also need review. Share the BMS IC, current part and schematic for FAE assessment. An integrated CMC is not automatically the better choice.

Compatibility cannot be assumed for the entire catalog. For isoSPI or another interface, check turns ratio, primary inductance, center taps, leakage inductance, cabling and isolation against the specific IC reference design, then validate communication and EMC performance. Share the IC model and link architecture for candidate matching.

Start with the BMS IC, interface, potential relationship across the isolation boundary, required working voltage and temperature range. Add cable length, PCB constraints and qualification requirements. The nominal pack voltage does not replace a review of each isolation boundary. Request part-specific qualification documentation for automotive projects.

If the part is known, send the number, quantity, project stage, destination and requested dispatch date for a quote or sample request; a replacement review is not required first. If no part is selected, begin with the application conditions. Sales confirms availability, costs and lead time for the specific item.

Send the current part number, datasheet, schematic and fixed mechanical constraints. A sales engineer will coordinate an FAE review and a comparison of candidates. Electrical, insulation, layout and sample validation are required; universal drop-in compatibility is not promised. Custom feasibility, tooling and timing are confirmed per project.
