Network Connector (RJ45/RJ11)

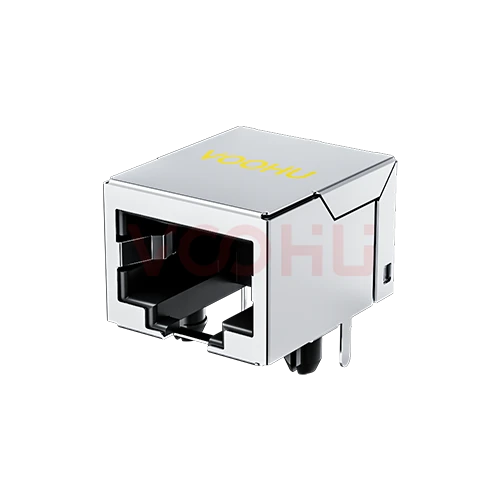

WH56C310820111101 RJ45 Jack without Magnetics
Single-port right-angle shielded RJ45 jack (10P8C modular jack): tab down, no LEDs, through-hole (DIP), shield tabs, no integrated magnetics (use it with a LAN transformer). Rated −40 to +85 °C.
- Orientation
- 90° (right angle)
- Ports
- 1 × 1
- Tab
- Down
- LED
- No
- Integrated magnetics
- No
- Operating temperature
- −40 to +85 °C
Left click: Rotate | Right click: Pan | Scroll: Zoom
When you click Get a Quote or Samples or Add to Inquiry, part number WH56C310820111101 is filled in automatically.
Request a Quote
Leave your details and we will send a tailored volume quote.
Our sales team will contact you within 1 business day.
Contact Sales
Reach our sales team for pricing and lead time.
Sales Hotline: +86 133 3865 5578
Email: voohu@voohuele.com
✓
Submitted
We have received your request. Our sales team will contact you within 1 business day.
01Specifications
WH56C310820111101 specifications
ParameterValue
Orientation
90° (right angle)
Ports
1 × 1
Positions / contacts
10P8C
Tab
Down
LED
No
Integrated magnetics
NoUse it with an external LAN transformer
Data rate
Not limited by the jackSet by the external LAN transformer
PoE
Not PoE rated
Mounting
DIP
Shield tabs
Yes
EMI gasket
No
Operating temperature
−40 to +85 °C
Values from published data for this part (parameters, FAQ and evaluation report). The datasheet prevails.
WH56C310820111101Need samples, or a value that is not in this table? Ask our FAE team.
Get a Quote or Samples
+ Add to Inquiry
02Applications
Where WH56C310820111101 is used
- Switches and routers
- Industrial controllers
- IP cameras and NVRs
- Embedded boards
Typical application
A jack without magnetics passes the signals straight to the cable; the LAN transformer between the PHY and the jack provides isolation and common-mode termination.
Match the jack's tab orientation and LED pins to your enclosure and the PHY's LED outputs.
Typical application for reference. Follow the PHY vendor's reference design.
Design notes
- 01Check tab orientation and LED positions against the enclosure opening.Tab Up / Tab Down and LED placement are the most common selection errors for RJ45 jacks.Check my layout →
- 02Bond the shield to chassis ground according to your grounding scheme.A floating or poorly bonded shield can make radiated emissions worse.EMC troubleshooting →
- 03For PoE or isolation, the magnetics decide — not the jack.A jack without magnetics provides neither PoE nor isolation by itself; choose a PoE-rated LAN transformer or a jack with integrated PoE magnetics.See LAN transformers →
Reference designs by application:Industrial ControlSecurity MonitoringData Communication
WH56C310820111101Not sure it fits your PHY and layout? An engineer can check your design.
Get a Quote or Samples
+ Add to Inquiry
03Documents
Datasheet, CAD and reports
-
WH56C310820111101 Datasheet (PDF)2025-09-02 · This part Download ↓
-
3D model (STEP)2026-04-07 · This part Download ↓
-
RJ45 Connector Reliability TestLatest · Product family View →
-
RJ45 EU RoHS ReportLatest · Product family View →
-
REACH SVHC test reportLatest · Communication electronic components View →
WH56C310820111101Need another file format, or samples to test? Ask our FAE team.
Get a Quote or Samples
+ Add to Inquiry
04Quality
Quality and compliance
DocumentNo.Issued / tested byDateApplies toActions
Certificate
Certificate · Company
ISO 9001:2015No. 19826Q02503R101
Quality management systemBeijing Xinjiyuan Certification Co., Ltd.Valid 2026-10-17 to 2029-10-16
19826Q02503R101
Beijing Xinjiyuan Certification Co., Ltd.
Valid2026-10-17 to 2029-10-16
Company
View PDF →
Verify →
Scope: R&D and sales of precision electronic connectors
Certificate
Certificate · Company
ISO 14001:2015No. 19826E01323R101
Environmental management systemBeijing Xinjiyuan Certification Co., Ltd.Valid 2026-10-17 to 2029-10-16
19826E01323R101
Beijing Xinjiyuan Certification Co., Ltd.
Valid2026-10-17 to 2029-10-16
Company
View PDF →
Verify →
Scope: R&D and sales of precision electronic connectors
Test report
Test report · RJ45 connectors
EU RoHSNo. WTH26H08256842R1C
2011/65/EU and (EU) 2015/863, 10 substancesWaltek Testing Group HCT (Shenzhen) Co., Ltd.Issued 2026-09-24
WTH26H08256842R1C
Waltek Testing Group HCT (Shenzhen) Co., Ltd.
Issued2026-09-24
RJ45 connectors
View PDF →
Test report
Test report · Communication electronic components
REACH SVHCNo. WTH26H06167853C
253 substancesWaltek Testing Group HCT (Shenzhen) Co., Ltd.Issued 2026-07-01
WTH26H06167853C
Waltek Testing Group HCT (Shenzhen) Co., Ltd.
Issued2026-07-01
Communication electronic components
View PDF →
ISO certificates cover VOOHU's management systems. RoHS and REACH test reports cover tested samples of each product family.
05Ordering
Ordering and delivery
06Compare
Same-series Comparison
Red marks values that differ from this part; data from the published parameters of each part.
Orientation
90° (right angle)
90° (right angle)
180° (vertical)
Ports
1 × 1
2 × 1
1 × 1
Tab
Down
Up/Down
Up
Integrated magnetics
No
No
No
Data rate
Not limited by the jack
Not limited by the jack
Not limited by the jack
PoE
Not PoE rated
Not PoE rated
Not PoE rated
LED
No
GR/GG
No
Mounting
DIP
DIP
DIP
Shield tabs
Yes
Yes
No
EMI gasket
No
No
No
Operating temperature
−40 to +85 °C
−40 to +85 °C
−40 to +85 °C
WH56C310820111101Not sure which part in the series fits? Ask our FAE team which one to sample.
Get a Quote or Samples
+ Add to Inquiry
07FAQ
WH56C310820111101 FAQ
Does WH56C310820111101 have integrated magnetics?
No. WH56C310820111101 is an RJ45 jack without magnetics.
Place a LAN transformer between the PHY and the jack, or choose an RJ45 jack with integrated magnetics if board space is tight. Data rate and PoE capability are then set by the transformer.
What does Tab Down mean for WH56C310820111101?
Tab Down describes where the latch sits relative to the PCB.
With Tab Up the latch faces away from the board; with Tab Down it faces the board. Choose the orientation that matches your enclosure opening and LED placement, and check the mirrored pinout before swapping one for the other.
How do I get samples of WH56C310820111101?
Samples are available for evaluation, and selected parts are free of charge. Our FAE team will be glad to confirm the options for your project.
Use the form below; the part number is filled in automatically.
08Support
Talk to an engineer
01Replace your current partSend the part number you use today. An engineer compares footprint, tab orientation, LEDs and shielding, and lists the differences.Start a replacement review →
02Match LEDs, tab and footprintSend your enclosure drawing and PHY. We check tab orientation, LED pins and the footprint.Check my layout →
03Port damaged after surge or ESDSend the symptoms and test level. Get an FAE-reviewed protection checklist.Start troubleshooting →
