WHD20805G Dual Ports DIP 10/100Base-TX PIN20 non-PoE LAN Transformer

Name: LAN Transformer_10/100Base-TX DIP Dual Ports_WHD20805G_VOOHU
Brand: VOOHU
SKU: WHD20805G

Homepage / Products

WHD20805G Dual Ports DIP 10/100Base-TX PIN20 non-PoE LAN Transformer

Category: LAN Transformer

Left click: Rotate | Right click: Pan | Scroll: Zoom

Buy Online

›

Product Parameters

Data rate 10/100 Base-TX

Installation Method DIP

Ports Dual Ports

PIN 20

Pitch 2.0mm

Operating Temperature 0 up to 70 °C

Vt (V (RMS)) 1500

PoE non-PoE

Solution

Ethernet

SPE

CAN

RS485

LVDS

Isolated SPI

PoE

Push-Pull Converter

Product Recommend

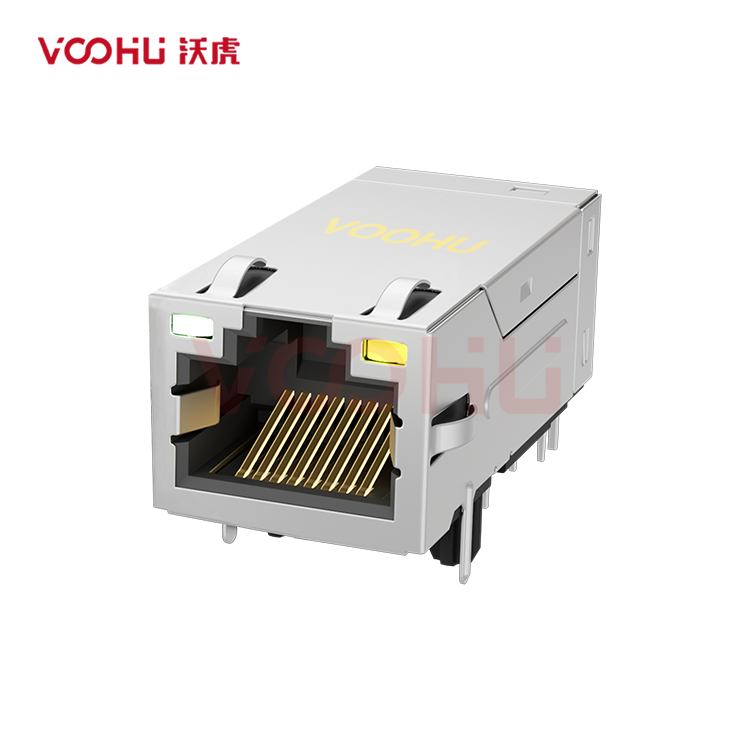

Network Connector (RJ45/RJ11)

POE Transformer

CHIP LAN

Common mode choke for signal line（Signal Line CMC）

TVS/ESD

PHY

Technical Resources and Design Support

We also provide professional technical support and document download services, including: package library download, datasheet download, reference circuit design materials, 3D model download, etc.
For technical assistance, please click the button below to add customer service or visit the sample request page to fill out the form. We will serve you as soon as possible.
Technical Support Email: fae.thorne@voohu.cn Phone: +86 400-1048-018

Quality Certifications

We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc.
For more details, please visit the Download Center to get documents or click the button below to add customer service. We will serve you as soon as possible.

Get a Quote or Samples

Whether you need sample testing, bulk purchasing or customized solutions, our sales team will respond quickly.
For small-volume orders, you can place orders directly on VOOHU Shop. We support VAT general/special invoices with a convenient and efficient process.
For technical assistance or sample requests, please click the button below to add customer service or visit the sample request page to fill out the form. We will serve you as soon as possible.
Customer Service Email: song.lei@voohu.cn Phone: +86 180 2130 1120

FAQ LAN Transformer: WHD20805G

Why can WHD20805G and WHD20702G not be interchanged directly even though both are 20PIN devices with 2.00 mm pitch?

›

The decisive differences are row spacing and body depth. WHD20805G has 10.16 mm row spacing and an approximately 12.50 mm body depth, while WHD20702G has 7.62 mm row spacing and an approximately 10.00 mm body depth. Although both have an 18.00 mm longitudinal pin span, their PCB hole coordinates and board area are different, so they cannot share a footprint.

Which signal parameters should be checked on both channels of WHD20805G?

›

Each port should separately meet a minimum open-circuit inductance of 350 μH at 100 kHz, 0.1 V, and 8 mA bias, together with a maximum insertion-loss magnitude of 1.1 dB from 1 to 100 MHz. Crosstalk attenuation and common-mode rejection should each have a magnitude of at least 30 dB from 1 to 100 MHz. Testing only one port does not represent the complete dual-port component.

What should be considered for through-hole production when WHD20805G is supplied at 24 pcs/tube?

›

Each tube contains 24 parts. Calculate line-side quantities, partial-tube balances, and changeover remnants by tube count. Before loading, use an actual part to confirm tube orientation, the pin 1 marking, the recommended 0.90 mm hole diameter, and insertion-fixture positioning. For automatic insertion, also verify that the 21.20 mm × 12.50 mm body does not interfere with the fixture or adjacent components.
