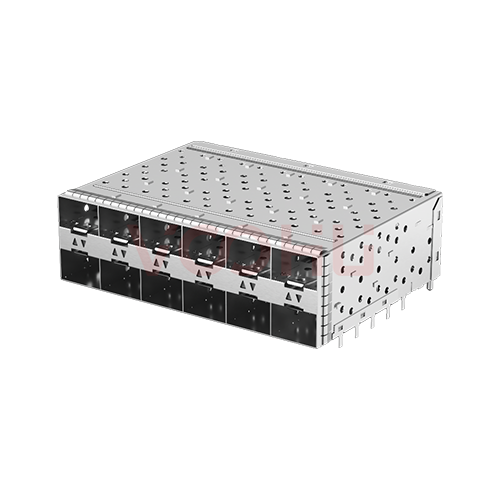

WHSFP16026F108 SFP+ 2×6 10G Press-Fit Cage+Connector Connector Gold Plated30U Ni 30U Fiber Optic cages
SFP Connector
WHSFP16026F108 SFP Connector
Left click: Rotate | Right click: Pan | Scroll: Zoom
When you click Get a Quote or Samples or Add to Inquiry, part number WHSFP16026F108 is filled in automatically.
Request a Quote
Leave your details and we will send a tailored volume quote.
Our sales team will contact you within 1 business day.
Contact Sales
Reach our sales team for pricing and lead time.
Sales Hotline: +86 133 3865 5578
Email: voohu@voohuele.com
✓
Submitted
We have received your request. Our sales team will contact you within 1 business day.
01Specifications
WHSFP16026F108 specifications
ParameterValue
Pluggable I/O product type
Cage+Connector
Overall dimensions
SFP+
Data Rate (Max) (Gb/s)
10G
Installation Type
Press-Fit
Ports
2 x 6
Included Lightpipe
△▽
Heat dissipation
Heat dissipation holes
Connector Gold Plated
30U
Nickel Plated Shell
Ni 30U
Values are taken from published parameters; the datasheet prevails.
WHSFP16026F108Need samples, or a value that is not in this table? Ask our FAE team.
Get a Quote or Samples
+ Add to Inquiry
02Documents
Datasheet, CAD and reports
-
WHSFP16026F108 Datasheet (PDF)2025-12-23 · This part Download ↓
-
3D model (STEP)2025-12-23 · This part Download ↓
-
Quality certificates (ISO / RoHS / REACH)Latest · All products View →
WHSFP16026F108Need another file format, or samples to test? Ask our FAE team.
Get a Quote or Samples
+ Add to Inquiry
03Quality
Quality and compliance
DocumentNo.Issued / tested byDateApplies toActions
Certificate
Certificate · Company
ISO 9001:2015No. 19826Q02503R101
Quality management systemBeijing Xinjiyuan Certification Co., Ltd.Valid 2026-10-17 to 2029-10-16
19826Q02503R101
Beijing Xinjiyuan Certification Co., Ltd.
Valid2026-10-17 to 2029-10-16
Company
View PDF →
Verify →
Scope: R&D and sales of precision electronic connectors
Certificate
Certificate · Company
ISO 14001:2015No. 19826E01323R101
Environmental management systemBeijing Xinjiyuan Certification Co., Ltd.Valid 2026-10-17 to 2029-10-16
19826E01323R101
Beijing Xinjiyuan Certification Co., Ltd.
Valid2026-10-17 to 2029-10-16
Company
View PDF →
Verify →
Scope: R&D and sales of precision electronic connectors ISO certificates cover VOOHU's management systems.
04Compare
Same-series Comparison
Red marks values that differ from this part; data from the published parameters of each part.
Pluggable I/O product type
Cage+Connector
Cage+Connector
Cage+Connector
Overall dimensions
SFP+
SFP+
SFP+
Data Rate (Max) (Gb/s)
10G
10G
10G
Installation Type
Press-Fit
Press-Fit
Press-Fit
Ports
2 x 6
2 x 6
2 x 8
Included Lightpipe
△▽
▽ △
▽△▽△
Heat dissipation
Heat dissipation holes
Heat dissipation holes
Heat dissipation holes
Connector Gold Plated
30U
30U
30U
Nickel Plated Shell
Ni 30U
Ni 30U
Ni 30U
