WHSQ24015P1 Single Port SMD 2.5G/5G PIN24 PoE+ LAN Transformer

Homepage / Products

LAN Transformer

WHSQ24015P1 2.5G/5GBASE-T PoE+ LAN Transformer

Single-port 2.5G/5GBASE-T LAN transformer (Ethernet transformer): 24-pin SMD, 1500 Vrms isolation, PoE+ (up to 720 mA). Operating temperature −40 to +85 °C.

Data rate: 2.5G/5GBASE-T
Ports: Single port
Mounting: SMD
Isolation voltage: 1500 Vrms
PoE: PoE+ (up to 720 mA)
Operating temperature: −40 to +85 °C

WHSQ24015P1 LAN Transformer perspective view

Product Datasheet Get a Quote or Samples + Add to Inquiry Support 3D Model PCB Layout / Package Contact Us

Quality and compliance

Certificate ISO 9001

Certificate ISO 14001

Test report EU RoHS

Test report REACH

When you click Get a Quote or Samples or Add to Inquiry, part number WHSQ24015P1 is filled in automatically.

01Specifications

WHSQ24015P1 specifications

Key attributes

ParameterValue

Data rate 2.5G/5GBASE-T

Ports Single port

Operating temperature −40 to +85 °C

PoE PoE+ (up to 720 mA)

Mounting SMD

Pins 24

Pitch 1.0 mm

Electrical

ParameterValue

Isolation voltage 1500 Vrms

Values from published data for this part (parameters, FAQ and evaluation report). The datasheet prevails.

WHSQ24015P1Need samples, or a value that is not in this table? Ask our FAE team. Get a Quote or Samples + Add to Inquiry

02Applications

Where WHSQ24015P1 is used

Switches and routers
Wireless access points
IP cameras
Industrial control devices

Typical application

The transformer isolates the PHY from the cable and couples the TX and RX differential pairs to the RJ45 jack.

Center-tap biasing on the PHY side depends on the PHY type (voltage-mode or current-mode).

Typical application for reference. Follow the PHY vendor's reference design.

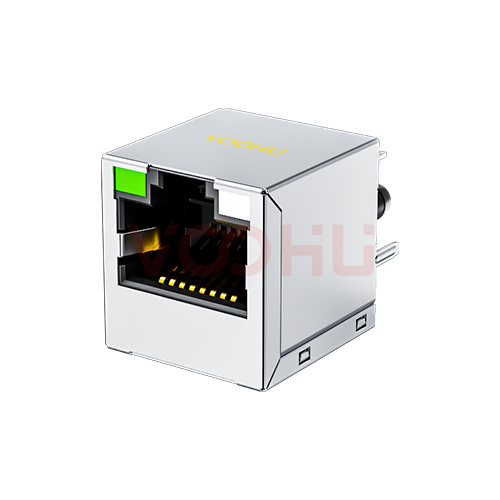

Works with

Design notes

01Connect the center taps according to your PHY type.Voltage-mode and current-mode PHYs need different center-tap biasing; a mismatch can break auto-negotiation.Check with your PHY →
02Terminate the line-side center taps with a Bob Smith network.It gives common-mode noise a defined path to chassis ground and helps EMC.
03Add line-side surge protection for outdoor or long-cable ports.Residual surge energy through the transformer can still damage the PHY.Troubleshooting guide →

Reference designs by application:Industrial Control Security Monitoring Data Communication

WHSQ24015P1Not sure it fits your PHY and layout? An engineer can check your design. Get a Quote or Samples + Add to Inquiry

03Documents

Datasheet, CAD and reports

Download Center →

WHSQ24015P1 Datasheet (PDF)2026-09-08 · This part Download ↓
3D model (STEP)2026-06-24 · This part Download ↓
PCB Layout / Package2025-12-29 · This part Download ↓
LAN Transformer Reliability TestLatest · Product family View →
LAN Transformer EU RoHS ReportLatest · Product family View →
REACH SVHC test reportLatest · Communication electronic components View →

WHSQ24015P1Need another file format, or samples to test? Ask our FAE team. Get a Quote or Samples + Add to Inquiry

04Quality

Quality and compliance

DocumentNo.Issued / tested byDateApplies toActions

Certificate Certificate · Company ISO 9001:2015No. 19826Q02503R101 Quality management systemBeijing Xinjiyuan Certification Co., Ltd.Valid 2026-10-17 to 2029-10-16

19826Q02503R101 Beijing Xinjiyuan Certification Co., Ltd. Valid2026-10-17 to 2029-10-16 Company View PDF → Verify → Scope: R&D and sales of precision electronic connectors

Certificate Certificate · Company ISO 14001:2015No. 19826E01323R101 Environmental management systemBeijing Xinjiyuan Certification Co., Ltd.Valid 2026-10-17 to 2029-10-16

19826E01323R101 Beijing Xinjiyuan Certification Co., Ltd. Valid2026-10-17 to 2029-10-16 Company View PDF → Verify → Scope: R&D and sales of precision electronic connectors

Test report Test report · LAN transformers EU RoHSNo. WTH26H06190301C 2011/65/EU and (EU) 2015/863, 10 substancesWaltek Testing Group HCT (Shenzhen) Co., Ltd.Issued 2026-07-31

WTH26H06190301C Waltek Testing Group HCT (Shenzhen) Co., Ltd. Issued2026-07-31 LAN transformers View PDF →

Test report Test report · Communication electronic components REACH SVHCNo. WTH26H06167853C 253 substancesWaltek Testing Group HCT (Shenzhen) Co., Ltd.Issued 2026-07-01

WTH26H06167853C Waltek Testing Group HCT (Shenzhen) Co., Ltd. Issued2026-07-01 Communication electronic components View PDF →

Test report Test report · Product family Reliability test report

— — — Product family View PDF →

ISO certificates cover VOOHU's management systems. RoHS and REACH test reports cover tested samples of each product family.

05Ordering

Ordering and delivery

05.1

Samples

Samples are available for evaluation, and selected parts are free of charge. Our FAE team will be glad to confirm the options for your project.

Get a Quote or Samples →

06Compare

Same-series Comparison

Red marks values that differ from this part; data from the published parameters of each part.

Parameter WHSQ24015P1This part WHSQ24015G WHSQ48002P1

Data rate 2.5G/5GBASE-T 2.5G/5GBASE-T 2.5G/5GBASE-T

Mounting SMD SMD SMD

Ports Single port Single port Dual port

Pins 24 24 48

Pitch 1.0 mm 1.0 mm 1.02 mm

Operating temperature −40 to +85 °C 0 to +70 °C −40 to +85 °C

Isolation voltage 1500 Vrms 1500 Vrms 1500 Vrms

PoE PoE+ (up to 720 mA) 4PPoE (up to 720mA) PoE+ (up to 720 mA)

WHSQ24015P1Not sure which part in the series fits? Ask our FAE team which one to sample. Get a Quote or Samples + Add to Inquiry

07FAQ

FAQ LAN Transformer: WHSQ24015P1

Which PoE class does the 720 mA on the WHSQ24015P1 correspond to?

The datasheet states PoE support of 30 W with each channel carrying 720 mA of DC balance current. 30 W corresponds to IEEE 802.3at — PoE+.

For 802.3bt Type 3 or Type 4 the WHSQ24015P1 is not the right part, and the 30 W figure cannot be extrapolated upward. The current is quoted per channel, so read it as written when budgeting port power rather than multiplying it out to a port total. Tell us the per-port current you are targeting and VOOHU will confirm the applicable scope. Other options sit in the 2.5G/5G BASE-T range.

The WHSQ24015P1 operating range says "included the temperature rise" — what does that mean?

The clause makes +85 °C the WHSQ24015P1's own temperature boundary rather than an allowable ambient, so self-heating must not be added on top of it.

The datasheet appends "Included The Temperature Rise" to the -40 °C to +85 °C operating range. Parts without that clause should have their figures read as a component operating range, and the two styles cannot be compared directly. No derating curve is published, so measure the component surface temperature in the finished product under the worst airflow case and confirm it stays below the limit. Temperature grades are listed per part in the 2.5G/5G BASE-T range.

The WHSQ24015P1 quotes -30 dB Typ cross talk — is that the same as -30 dB Min?

No. Typ is a typical value and Min is a guaranteed floor; the two are not comparable and a Typ figure should not go into a worst-case budget as if it were guaranteed.

The WHSQ24015P1 states cross talk and common-mode rejection both at -30 dB Typ from 1 to 250 MHz, where most 100M and Gigabit parts state -30 dB Min from 1 to 100 MHz. Both differences matter: the qualifier changes from Min to Typ, and the band widens — reflecting the higher data rate rather than a relaxed specification. Where a project needs a guaranteed limit at a specific frequency, tell us the band and the criterion. Other parts sit in the 2.5G/5G BASE-T range.
