WHS160B1PTG Single Port SMD 10/100Base-TX PIN16 PoE：850mA LAN Transformer

Name: LAN Transformer_10/100Base-TX SMD Single Port_WHS160B1PTG_VOOHU
Brand: VOOHU
SKU: WHS160B1PTG
Price: 0.3411 USD
Availability: InStock

Homepage / Products

WHS160B1PTG Single Port SMD 10/100Base-TX PIN16 PoE：850mA LAN Transformer

Category: LAN Transformer

Left click: Rotate | Right click: Pan | Scroll: Zoom

Buy Online

›

Product Parameters

Data rate 10/100 Base-TX

Installation Method SMD

Ports Single Port

PIN 16

Pitch 1.27mm

Operating Temperature -40 up to +85 °C

Vt (V (RMS)) 1500

PoE 4PPoE (up to 850 mA)

Solution

Ethernet

SPE

CAN

RS485

LVDS

Isolated SPI

PoE

Push-Pull Converter

Product Recommend

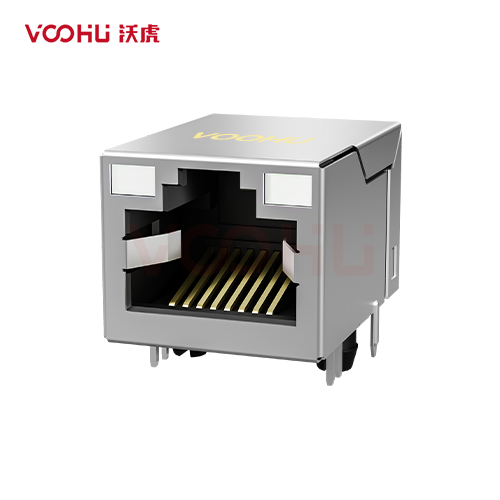

Network Connector (RJ45/RJ11)

POE Transformer

CHIP LAN

Common mode choke for signal line（Signal Line CMC）

TVS/ESD

PHY

Technical Resources and Design Support

We also provide professional technical support and document download services, including: package library download, datasheet download, reference circuit design materials, 3D model download, etc.
For technical assistance, please click the button below to add customer service or visit the sample request page to fill out the form. We will serve you as soon as possible.
Technical Support Email: fae.thorne@voohu.cn Phone: +86 400-1048-018

Quality Certifications

We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc.
For more details, please visit the Download Center to get documents or click the button below to add customer service. We will serve you as soon as possible.

Get a Quote or Samples

Whether you need sample testing, bulk purchasing or customized solutions, our sales team will respond quickly.
For small-volume orders, you can place orders directly on VOOHU Shop. We support VAT general/special invoices with a convenient and efficient process.
For technical assistance or sample requests, please click the button below to add customer service or visit the sample request page to fill out the form. We will serve you as soon as possible.
Customer Service Email: song.lei@voohu.cn Phone: +86 180 2130 1120

FAQ LAN Transformer: WHS160B1PTG

Can the 850 mA current capability of WHS160B1PTG be interpreted directly as four-pair power delivery or as a fixed output-power rating?

›

No. The 850 mA value is the specified current capability of the component. By itself, it does not establish the number of powered pairs, the PSE class, or the power available at the PD. The system design must define the power topology and calculate cable voltage drop and temperature rise in the connector and PCB copper. Until the pair configuration is confirmed, 850 mA must not be rewritten as an equipment-level power promise.

When choosing between the 850 mA WHS160B1PTG and the 720 mA WHS16002-1PTG, is comparing only the current values sufficient?

›

No. WHS160B1PTG is specified for 850 mA and WHS16002-1PTG for 720 mA, but their internal connections, intended power schemes, thermal margin, and PCB compatibility must also be compared. The higher current capability is meaningful only after the pinout, power path, operating temperature, and prototype test results all satisfy the application.

How should REACH and RoHS compliance be reviewed together with electrical selection when purchasing WHS160B1PTG?

›

WHS160B1PTG meets REACH and RoHS requirements, which supports the material-compliance review. Electrical selection must separately confirm the 850 mA current capability, -40 to +85 °C operating range, and 1500 VAC for 60 s dielectric withstand condition. Environmental substance compliance does not automatically establish PoE system compliance, electrical safety, or end-product certification.
