WHS16013LF Single Port SMD 10/100Base-TX PIN16 non-PoE LAN Transformer

Name: LAN Transformer_10/100Base-TX SMD Single Port_WHS16013LF_VOOHU
Brand: VOOHU
SKU: WHS16013LF
Price: 0.23 USD
Availability: InStock

Homepage / Products

WHS16013LF Single Port SMD 10/100Base-TX PIN16 non-PoE LAN Transformer

Category: LAN Transformer

Left click: Rotate | Right click: Pan | Scroll: Zoom

Buy Online

›

Product Parameters

Data rate 10/100 Base-TX

Installation Method SMD

Ports Single Port

PIN 16

Pitch 1.27mm

Operating Temperature 0 up to 70 °C

Vt (V (RMS)) 1500

PoE non-PoE

Solution

Ethernet

SPE

CAN

RS485

LVDS

Isolated SPI

PoE

Push-Pull Converter

Product Recommend

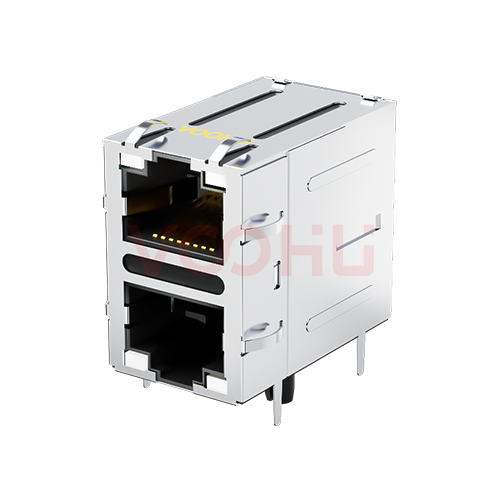

Network Connector (RJ45/RJ11)

POE Transformer

CHIP LAN

Common mode choke for signal line（Signal Line CMC）

TVS/ESD

PHY

Technical Resources and Design Support

We also provide professional technical support and document download services, including: package library download, datasheet download, reference circuit design materials, 3D model download, etc.
For technical assistance, please click the button below to add customer service or visit the sample request page to fill out the form. We will serve you as soon as possible.
Technical Support Email: fae.thorne@voohu.cn Phone: +86 400-1048-018

Quality Certifications

We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc.
For more details, please visit the Download Center to get documents or click the button below to add customer service. We will serve you as soon as possible.

Get a Quote or Samples

Whether you need sample testing, bulk purchasing or customized solutions, our sales team will respond quickly.
For small-volume orders, you can place orders directly on VOOHU Shop. We support VAT general/special invoices with a convenient and efficient process.
For technical assistance or sample requests, please click the button below to add customer service or visit the sample request page to fill out the form. We will serve you as soon as possible.
Customer Service Email: song.lei@voohu.cn Phone: +86 180 2130 1120

FAQ LAN Transformer: WHS16013LF

What type of problem is the additional cable-side common-mode filter stage in WHS16013LF intended to address?

›

It provides an additional magnetic suppression path for cable-side common-mode noise, improving the conditions for common-mode interference control without changing the basic connection of the differential data signal. Whether it is sufficient for the target EMC limit must still be verified with the RJ45 shield, chassis ground, Bob Smith termination, and complete board layout.

Which frequency-band limits should be used to accept the 10/100BASE-T signal performance of WHS16013LF?

›

Insertion loss from 1 to 100 MHz should have a magnitude no greater than 1.1 dB. Return loss should have a magnitude of at least 18 dB from 1 to 30 MHz, 14.4 dB at 40 MHz, 13.1 dB at 50 MHz, and 12 dB from 60 to 80 MHz. Crosstalk attenuation and common-mode rejection should each have a magnitude of at least 30 dB from 1 to 100 MHz. A single test frequency cannot represent the full band.

WHS16013LF and WHS16503G both include an additional common-mode stage. Can they be substituted directly?

›

No. Internal function alone is not enough. WHS16013LF has an approximately 12.80 mm × 6.90 mm body and a 5.65 mm height; WHS16503G is approximately 12.70 mm × 6.85 mm and 4.95 mm high. The schematic, pads, and pin orientation must also be compared pin by pin, and prototype link and EMC results must confirm the substitution.
